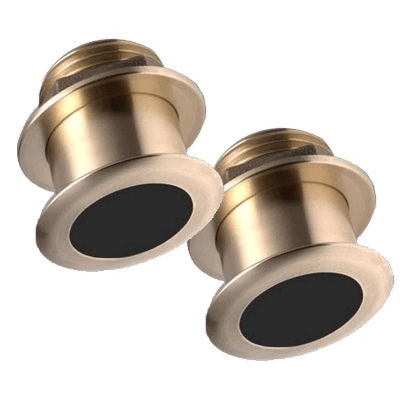

The Raymarine B175 Depth/Temperature Thru Hull Low-High
Transducer pair 12 deg covers popular fishing frequencies
of 50kHz and 200kHz plus everything else in the 40kHz to 60kHz and
130kHz to 210kHz bandwidths. This 1kW, flush-mount, Tilted Element
transducer is perfect for fast, trailered, tournament sportfishing
vessels that cannot have a High-Performance Fairing. The
flush-mounted, bronze housing protrudes less than a quarter inch
(6.35 mm) outside your hull and can sit on trailer rollers and
bunks with no damage. The ceramic arrays are tilted 12° inside the
housing giving you the perfect vertical beam with maximum energy on
what is directly below your boat.
Raymarine B175 Depth/Temperature Thru Hull Low-High Transducer pair 12 deg Features:
Raymarine B175 Depth/Temperature Thru Hull Low-High Transducer pair 12 deg Specifications:
Raymarine B175 Depth/Temperature Thru Hull Low-High Transducer pair 12 deg Features:
- Five to ten times greater detail and resolution
- 10 to 1,000 times more energy on targets
- Precise separation between baitfish and game fish
- Superior performance in noisy environments
- Improved bottom tracking at high boat speeds
Raymarine B175 Depth/Temperature Thru Hull Low-High Transducer pair 12 deg Specifications:
- Frequency: Low CHIRP at 40-60kHz, High CHIRP at
130-210kHz
- Beamwidth: 32° to 21°(L) and 15° to 9°(H)
- Transmit Power: 1,000W (RMS)
- Style: Thru-hull
- Hull Deadrise Angle: 8°-15°
- Hole Diameter for Installation: 98mm (3 7/8”) hole
size
- Sensors: Depth/Temp
