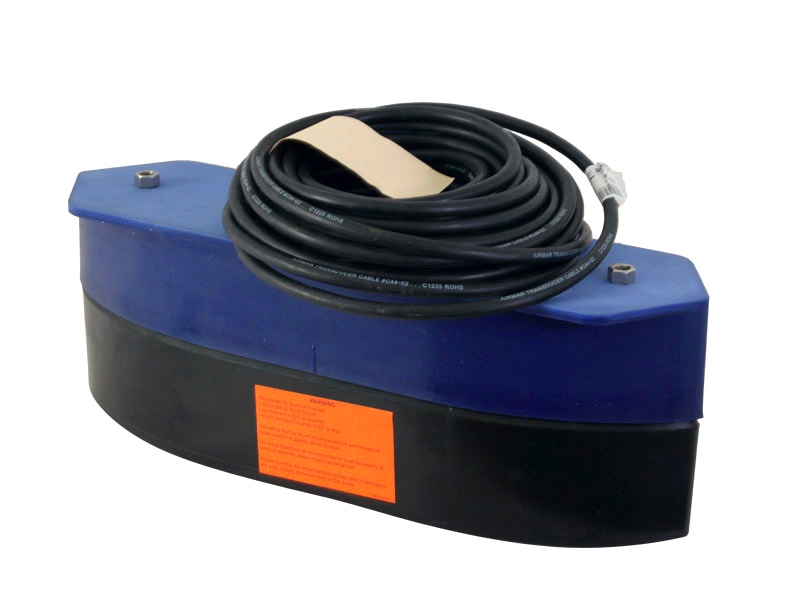

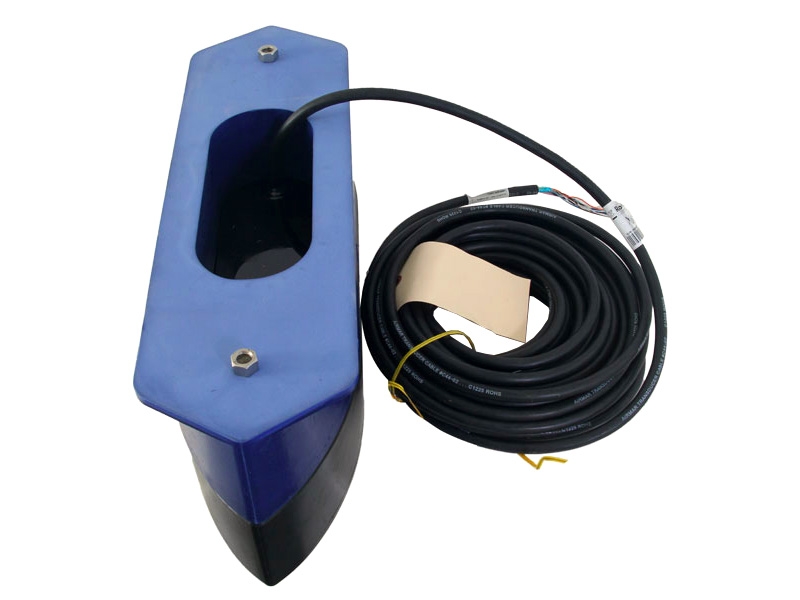

The Raymarine R509 Depth/Temperature Thru Hull Low-Medium
Hi Performance 3kW Transducer contains 25 internal
ceramics to provide an unprecedented level of shallow and deep
water sensitivity. Pairing this array of elements with the
transducers maximum 3kW output and you truly have the best sport
fishing transducer on the market. Choose this transducer for
additional coverage in shallow water.
Raymarine R509 Depth/Temperature Thru Hull Low-Medium Hi Performance 3kW Transducer Features:
Raymarine R509 Depth/Temperature Thru Hull Low-Medium Hi Performance 3kW Transducer Specifications:
Raymarine R509 Depth/Temperature Thru Hull Low-Medium Hi Performance 3kW Transducer Features:
- Durable Urethane construction
- Depth and temperature sensor
- 25 internal ceramics
- Shallow and deep water sensitivity
Raymarine R509 Depth/Temperature Thru Hull Low-Medium Hi Performance 3kW Transducer Specifications:

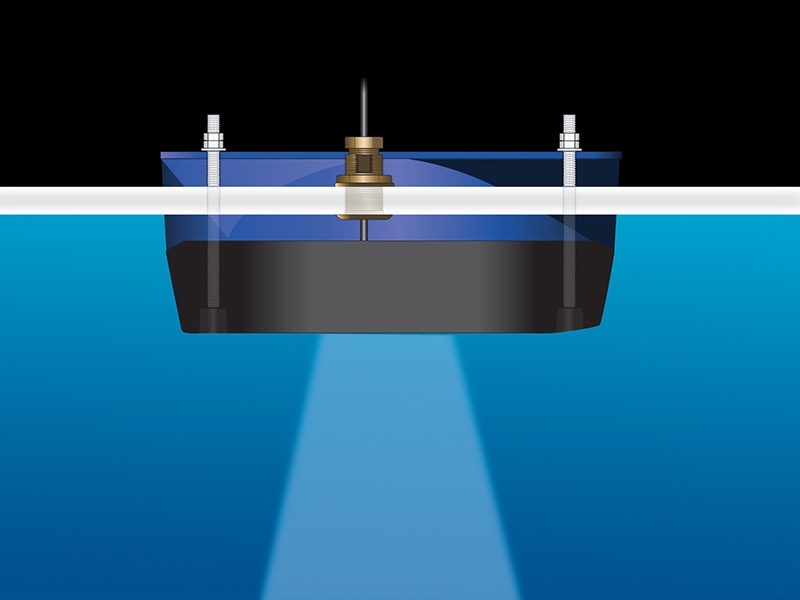

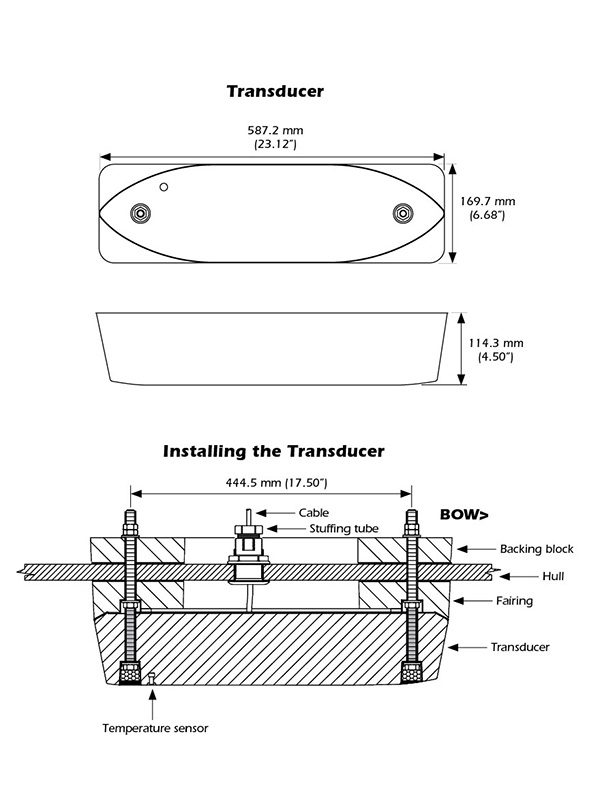

- Installation: Thru-hull
- Max Depth: Low at 10,000 ft, Medium at 3,000
- Hull Type: Fiberglass, wood or metal
- Frequency: CHIRP Low (28-60 KHz) and Medium (80-130
kHz)
- Beamwidth: 23°-9(L) and 13°-8°(M)
- Transmit Power: 3,000W (RMS)
- Supported Deadrise/ Transom Angles: 0-25° Deadrise
