Hella Marine Normally Open Mini Relay 24V 4-Pin 20A

Click on the image above to view full picture

More Views

Details

Details

Eliminates voltage spikes

The Hella Marine Normally Open Mini Relay is used to close the electric circuit between power source and electrical load, i.e. the load is switched on.

Hella Marine Normally Open Mini Relay Specifications:
  • Voltage: 24V
  • Pins: 4 Pin
  • Function: Normally Open
  • Protection: Resistor

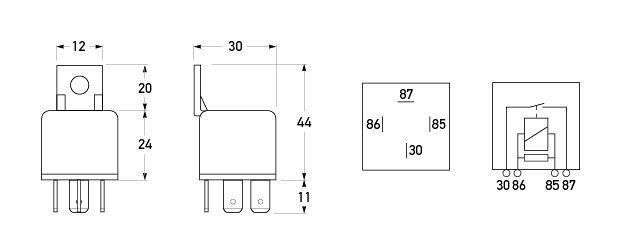

  • Pin Designations:
    85/2 - connects to Earth (end of winding to ground or negative)
    86/1 - connects to Positive
    87/5 - connects to Output (to consumer e.g. driving lamp)
    30/3 - connects to Positive supply (Input from + battery terminal, direct)
  • Maximum Load: 20A
  • Current Draw: 90mA
  • Bracket: Yes
