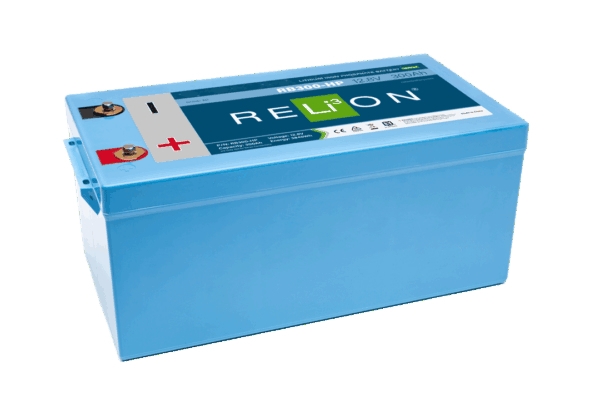

RELiON 12V 300AH DIN LiFePO4 Battery

The item you're looking at is currently unavailable or has limited stock, how about this one instead?

RELiON RB100 LiFePO4 Rechargeable Lithium Deep Cycle Battery 12V 100Ah

ONLY $1,499.00

Details

Details

RELiON's RB300-HP is a dual-purpose 12V, 300 Ah lithium battery. Our HP Series batteries are high performing dual purpose deep cycle batteries that can handle both starting and cycling. The RB300-HP has increased peak amps over RELiON's standard batteries. This increase in peak amps can be used to start motors, electric start generators and other high amp draw devices. After starting, the battery can double as a house battery providing power for peripherals, accessories and other onboard needs.

RELiON's HP Series batteries are a perfect compromise between the unique demands of starting service and deep cycling, low amp draw service. The RB300-HP is a powerhouse for use in many marine applications including sailboats and catamarans.

The RB300-HP features installation flexibility and no maintenance over the life of the battery. It maintains consistent power and is equipped with an M8 terminal type and a built-in battery management system (BMS).

PRODUCT SPECIFICATIONS

• Voltage: 12.8V
• Amp Hours: 300Ah

DIMENSIONS and WEIGHT

• Length: 20.6 in (522 mm)
• Width: 10.5 in (267 mm)
• Height: 8.7 in (220 mm)
• Weight: 82.7 lbs (37.5 kg)

APPLICATIONS

• Marine

Specifications:

Electrical Specifications
Nominal Voltage	12.8 V
Nominal Capacity	300 Ah
Capacity @ 25A	720 min
Energy	3840 Wh
Resistance	?30 mohms @ 50% SOC
Efficiency	99%
Self Discharge	<3% per Month
Maximum Modules in Series	1 (Single Use)

Mechanical Specifications
Dimensions (L x W x H)	20.6 x 10.5 x 8.7 (522 x 267 x 220 mm)
Weight	82.7 lbs (37.5 kg)
Terminal Type	M8 x 1.25
Terminal Torque	80 - 100 in-lbs (9 - 11 N-m)
Case Material	ABS
Enclosure Protection	IP66
Cell Type - Chemistry	Cylindrical - LiFePO4

Discharge Specifications
Maximum Continuous Discharge Current	100 A
Peak Discharge Current	800 A (2 s)
BMS Discharge Current Cut-Off	1000 A plus or minus 100 A (2.2 plus or minus 1 ms)
Recommended Low Voltage Disconnect	11 V
BMS Discharge Voltage Cut-Off	9.2 V (2.3 plus or minus 0.08 vpc) (4.2 plus or minus 0.5 s)
Reconnect Voltage	10 V (2.5 plus or minus 0.1 vpc)
Short Circuit Protection	200-600 micros

Charge Specifications
Recommended Charge Current	15 A - 50 A
Maximum Charge Current	100 A
Charge Current 32 degrees F to 14 degrees F (0 to -10 degrees C)	?0.1 C
Charge Current -4 degrees F to 14 degrees F (-20 to -10 degrees C)	?0.05 C
Recommended Charge Voltage	14.2 V - 14.6 V
BMS Charge Voltage Cut-Off	15.4 V (3.85 plus or minus 0.025 vpc)
	(1 plus or minus 0.2 s)
Reconnect Voltage	14.6 V (3.65 plus or minus 0.05 vpc)
Balancing Voltage	14.4 V (3.6 plus or minus 0.025 vpc)

Temperature Specifications
Discharge Temperature	-4 to 140 degrees F (-20 to 60 degrees C)
Charge Temperature	-4 to 113 degrees F (-20 to 45 degrees C)
Storage Temperature	23 to 95 degrees F (-5 to 35 degrees C)
BMS High Temperature Cut-Off	176 degrees F (80 degrees C)
Reconnect Temperature	122 degrees F (50 degrees C)
Refer to charge currents below 0 degreesC (32 degreesF)

Compliance Specifications
Certifications	UN38.3 and CE (battery)
	UL1642 (File# MH62098) (cells)
	IEC62133 (cells)
Shipping Classification	UN 3480, CLASS 9
