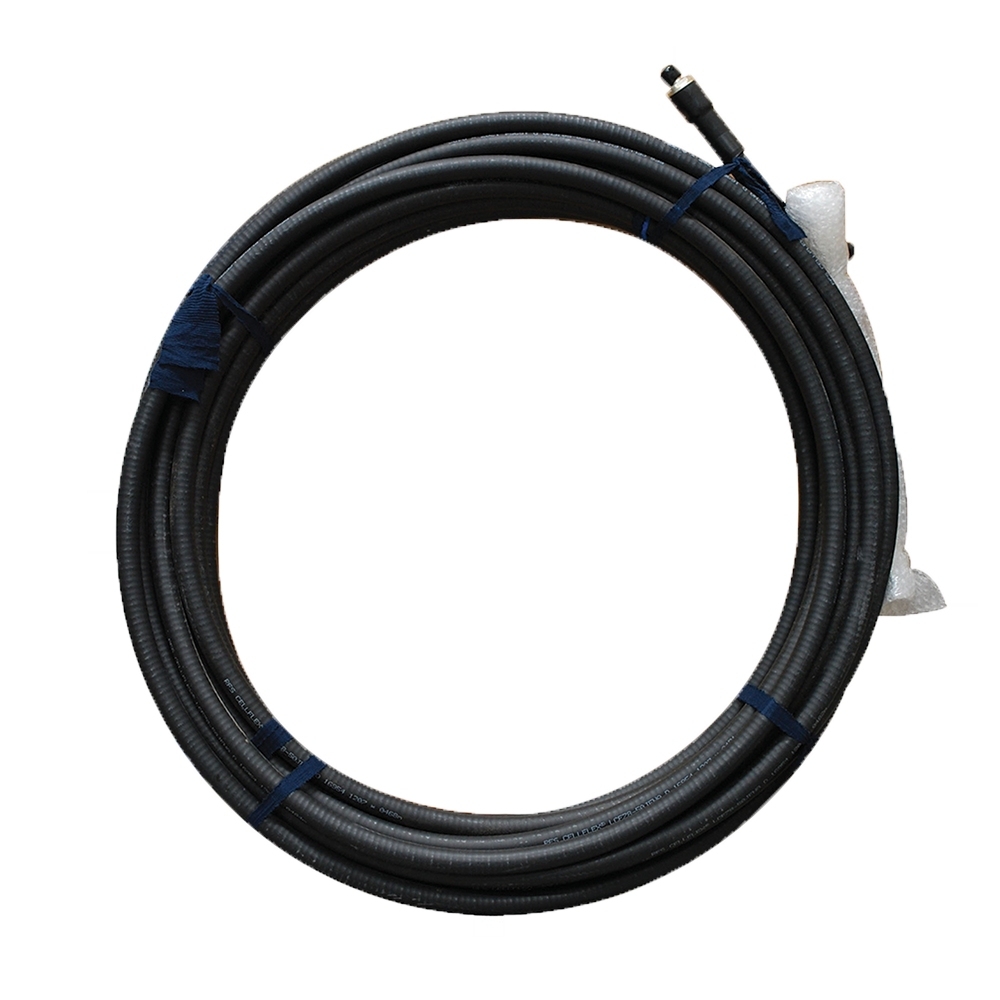

Beam Iridium Passive Antenna Cable Kit 30m
Item no longer available -
contact us for
an alternative.
Available Now
Find In Store
Deliver to:
Auckland 1026,
NZ
Estimated:
$9.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy Now, Pay Later with
Find Local Store
Buy Now Pay Later with Afterpay. Available for purchases between $99 and $2000.
QCard No payments or interest for 12 months*
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&C
Report incorrect product information
Beam RST936 Iridium 30 metre (98 feet) antenna cable provides the ability to run long distance installations for larger marine vessels and fixed installations and is pre-terminated with TNC male connectors.
Specifications:Main Cable (Passive)
| Length | m | ft |
| Main Cable | 29 | 95.14 |
| Dimensions | mm | inches |
| External Diameter | 27.8 | 1.2 |
| Bend Radius | 120 | 4.72 |
| Bend Radius - repeated | 250 | 9.84 |
| Temperature | Degrees degreesC | Degrees degreesF |
| Operating | -50 degreesC to +85 degreesC | -58 degreesF to +185 degreesF |
Fly-Leads (Passive)
| Length | m | ft |
| Fly-Lead 1 | 0.5 | 1.64 |
| Fly-Lead 2 | 0.5 | 1.64 |
| Dimensions | mm | inches |
| External Diameter | 6.1 | 0.24 |
| Bend Radius | 19.1 | 0.75 |
| Bend Radius - repeated | 63.5 | 2.5 |
| Temperature | Degrees degreesC | Degrees degreesF |
| Operating | -40 degreesC to +85 degreesC | -40 degreesF to +185 degreesF |
Connectors
| Main Cable | N-Male to N-Male |
| Fly-Lead 1 | N-Female to TNC-Male |
| Fly-Lead 2 | N-Female to TNC-Male |
Total Kit Weight
| kg | lbs |
| 11.94 | 26.32 |
