Rock-solid, reliable connections on deck

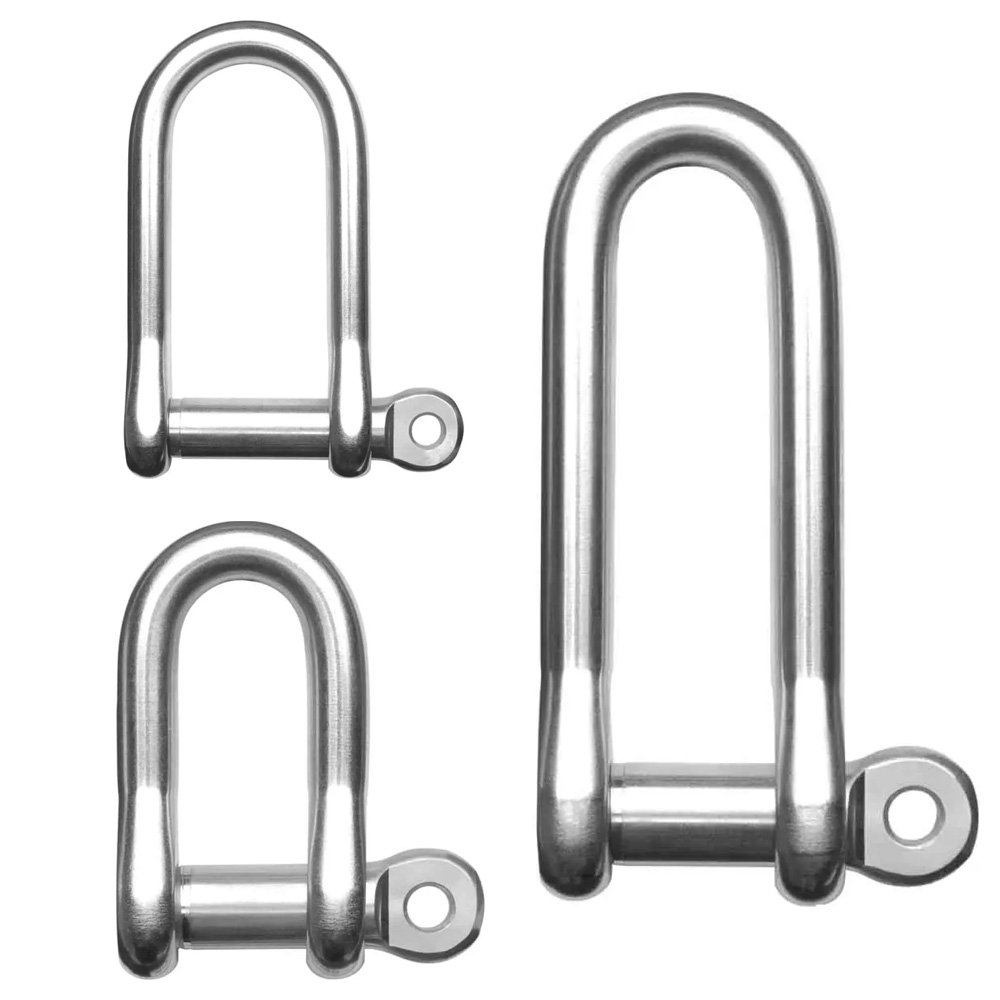

The Ronstan 316SS D Shackle is designed for durability and performance in demanding marine environments. Constructed from premium-grade 316 stainless steel, it offers excellent resistance to corrosion and wear, ensuring reliability over time. This shandard D shackle is equipped with a screw pin featuring a coined head, allowing for effortless handling and secure fastening. It's also drilled for seizing wire, allowing for additional security measures to prevent accidental opening under load.
This lightweight shackle is an ideal choice for various applications in sailing, ensuring that you can rely on its strength and integrity while minimising added weight to your setup. The combination of a robust design with a lightweight profile makes it suitable for a wide range of marine applications, from securing blocks to connecting hardware on your sailing vessel.
Ronstan 316SS D Shackle Features:
- Grade 316 stainless steel D shackle
- High strength to weight ratio
- High load capacity
- Premium quality, rated
- Coined shackle pin head
- Drilled for seizing wire
- Available types: Standard, Long, Wide
Ronstan 316SS D Shackle Specifications:
| Part Number | Type | Pin Diameter (in) | Pin Diameter (mm) | Inside Length | Inside Width | Point Load Breaking Load | Uniformly Distributed Load | Weight |
|---|---|---|---|---|---|---|---|---|
| RF619 | Standard | 3/8" | 9.5mm | 38mm | 17mm | 3600kg | 5400kg | 80g |
| RF620 | Standard | 1/2" | 12.7mm | 42mm | 19mm | 7500kg | 7700kg | 130g |

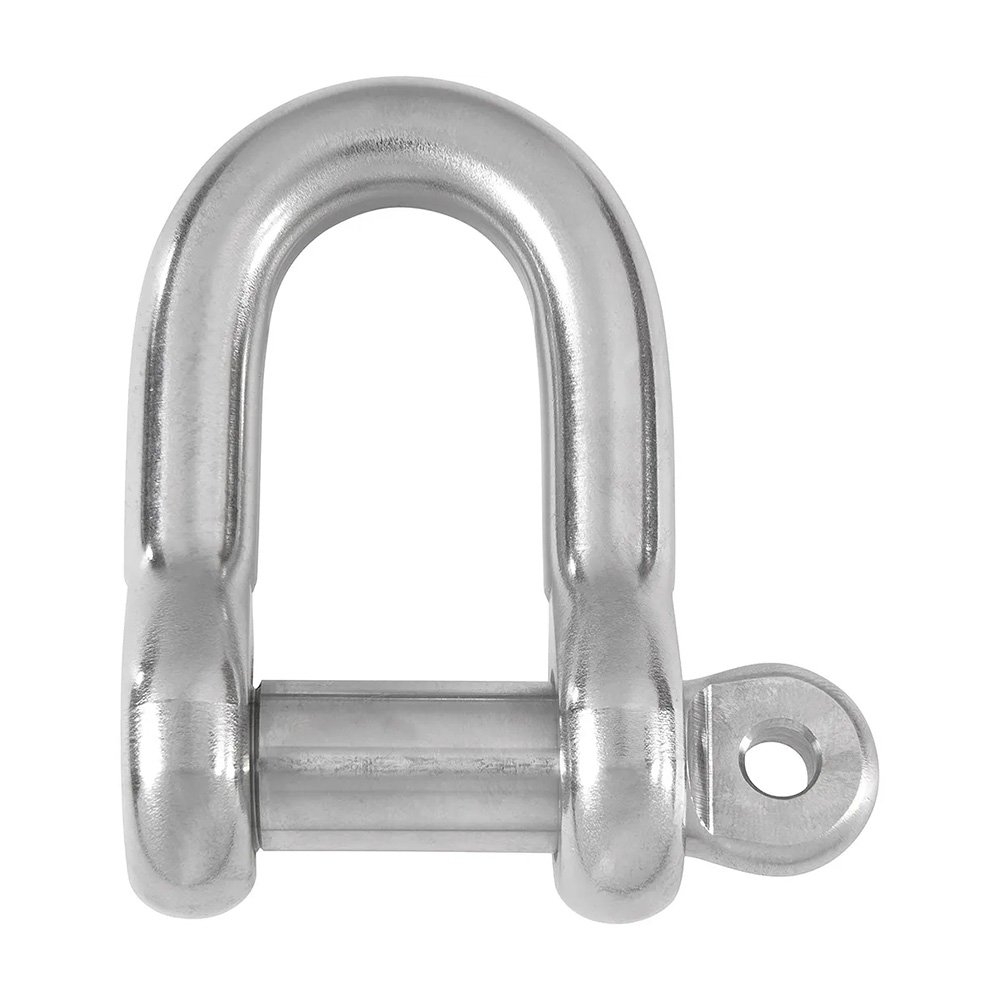

| RF1035 | Standard | 5/8" | 15.9mm | 47mm | 25mm | 14000kg | 11000kg | 280g |
| RF625 | Long | 3/8" | 9.5mm | 60mm | 17mm | 3600kg | 5400kg | 90g |
| RF626 | Long | 1/2" | 12.7mm | 72mm | 18mm | 7500kg | 7700kg | 155g |

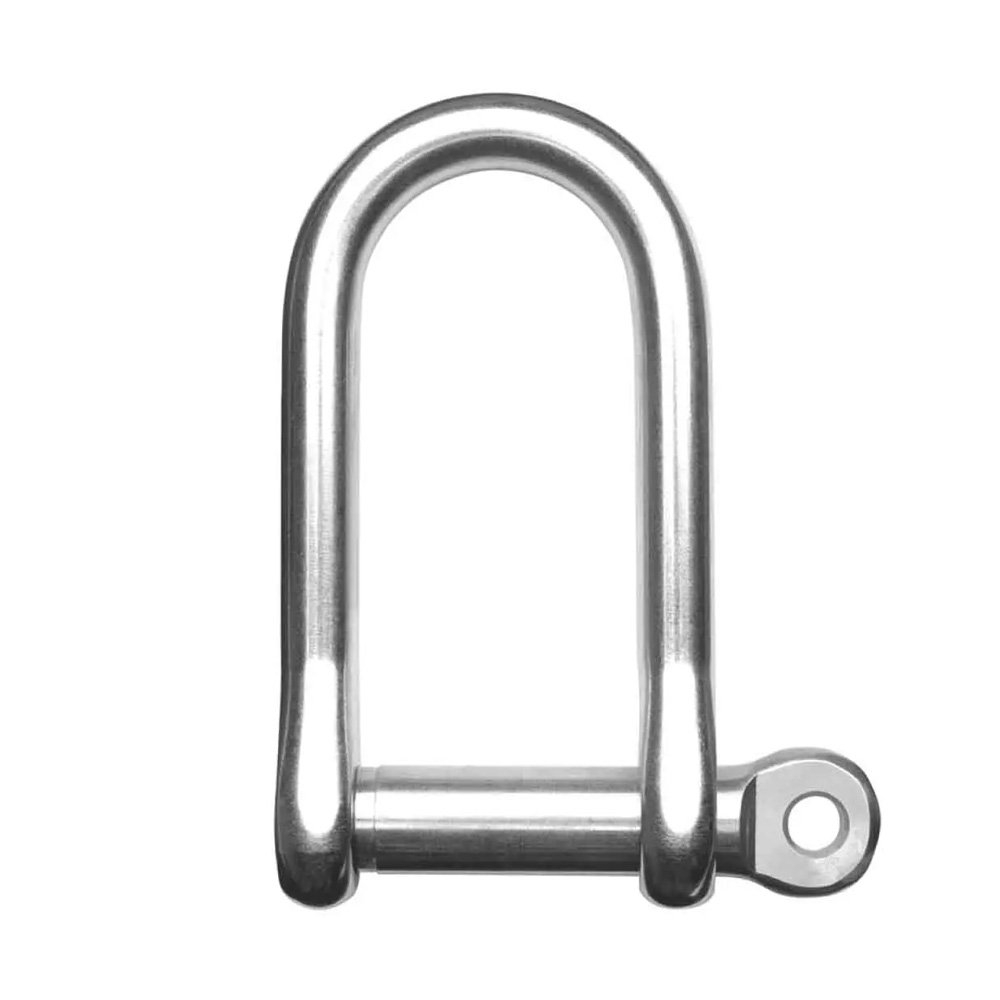

| RF641 | Wide | 1/2" | 12.7mm | 68mm | 33mm | 5500kg | 7700kg | 170g |
Note: The "Uniformly Distributed Load" breaking load of the shackle; the load is applied across the full span of the shackle pin. The "Point Load" breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.
