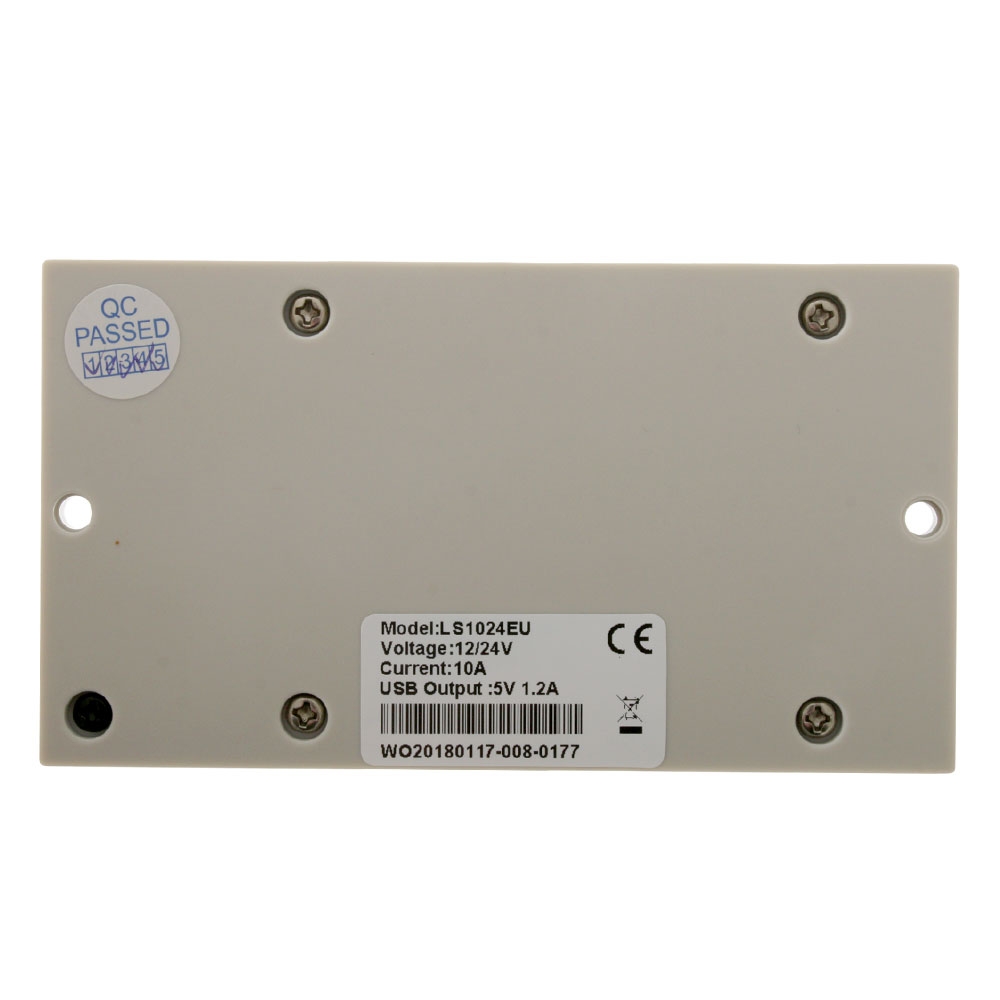

Solar Controller with USB 10A 12V
#9112587
Solar Controller with USB 10A 12V
#9112587
Available Now
Find In Store
Deliver to:
Auckland 1026,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy Now, Pay Later with
Find Local Store
Buy Now Pay Later with Afterpay. Available for purchases between $99 and $2000.
QCard No payments or interest for 12 months*
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&C
Report incorrect product information
Cost effective
The Solar Controller with USB is a cost effective 12V solar regulator with a handy USB output for solar panels.
Electronic Protections:
- Reverse polarity of solar modules
- Reverse polarity of load and battery
- Short circuit of solar modules
- Short circuit of load
- Over temperature
- Over voltage
Solar Controller with USB Features:
- Current: 10 amp
- Suits panel up to 160 watt
- Voltage: 12 Volt
- USB Output: 5V 1A
- LED battery indicator
- Suitable for Gel, Sealed and flooded batteries
Solar Controller with USB Specifications:
- High voltage disconnect: 16V
- Max. PV open circuit voltage: 30V
- Float voltage: 13.8V
- Low voltage disconnect: 11.1V
- Low voltage reconnect: 12.6V
- Equalise duration: 2 hours
- Electronic protections:
Short circuit and over current - load
Reverse polarity - battery
Limits high voltage to protect loads
Lightning protection - Terminals: For wire sizes to 2.5mm²
- Weight: 82g
- Dimension overall: 101.2 x 67 x 21.8mm
- Dimension mounting hole position: 92.7mm
- Dimension mounting hole size: ø4.5
- Self-consumption: ≤6mA
- Temperature: -35°C to +55°C
- Warranty: 1 year
