Waterproof Solar Panel Connectors

#9032099
Warranty Badge - 12-Months
Check Below for Availability

Seen a lower price? Ask us to beat it

Product Name Price Qty

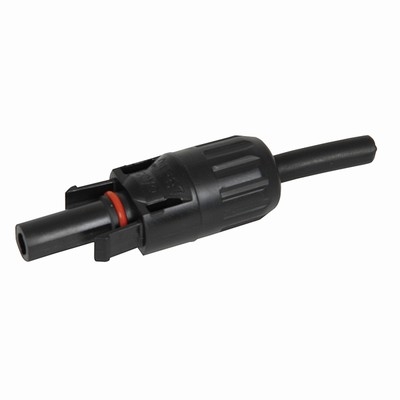

Waterproof Solar Power ''PV'' Connector 4mm Male

Ships Apr 4 - Apr 14

NOW $13.50

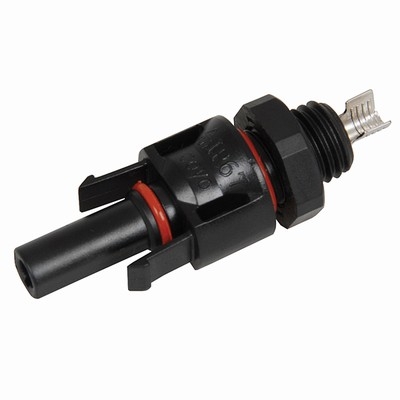

Waterproof Solar Panel Mount Connector 6mm Male

Out of Stock

NOW $5.45

Sold Out

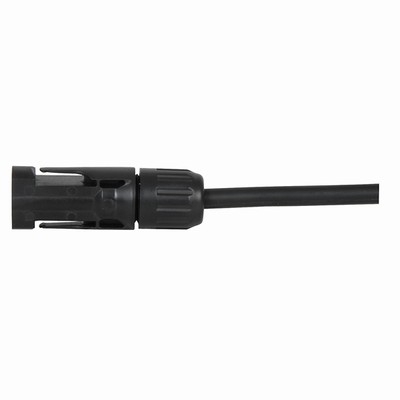

Waterproof Solar Panel ''PV'' Connector 4mm Female

Ships Apr 4 - Apr 14

NOW $13.50
Add Items to Cart
No payments or interest for 12 months*

Click on the image above to view full picture

More Views

Details

Details

IP67 rated for maximum environmental protection, these photovoltaic (PV) system - Waterproof Solar Panel Connectors are ideally suited to harsh installations such as solar panel arrays and other permanent outdoor applications. When matched with the solar power cables WH-3120 and WH-3122, you can leave your cabling out in the open with the knowledge that you will never have a bad connection or an oxidised power cable. Both panel mounting and in-line connectors are available to suit a wide range of system applications.

Waterproof Solar Panel Connectors Specifications:
  • Rated voltage: 1000VDC
  • Rated current: 30A at 70 degreesC, 25A at 85 degreesC
  • Contact resistance: <5 milliohms
  • Temperature range: -40 - 90 degreesC
  • TUV certification: 2 PfG 1161/01.06
  • Assembly Tool: TH-1930
  • Suitable crimping tools: TH-1834 or TH-1950
