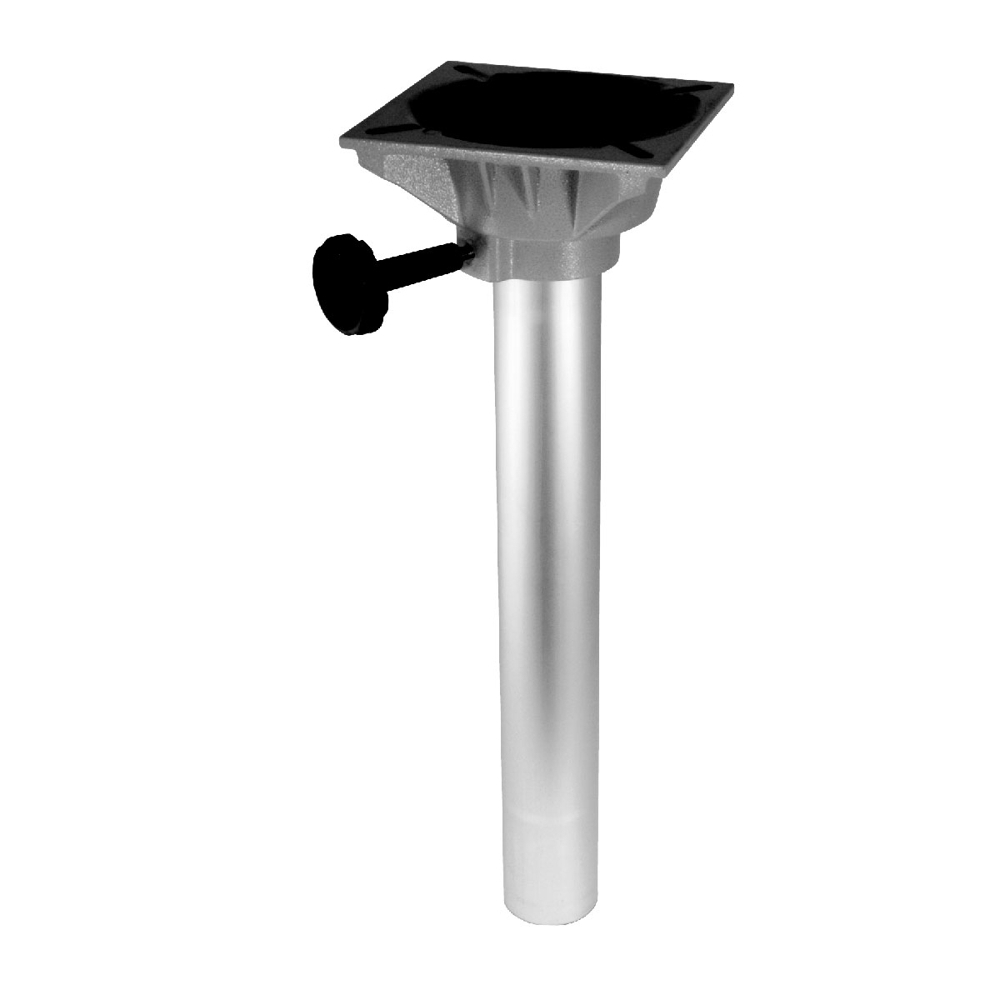

Springfield Plug-in Fixed Height Pedestals: Swivel and post

The plug-in pedestal system offers the most flexible seating position options of all pedestals available from BLA. Any number of seating positions can be chosen by the simple addition of the base of your choice. By offering three styles of pedestals - fixed, manual adjustable or gas adjustable - plug-in caters for most individual requirements. Manufactured from a combination of aluminium, stainless steel and glass filled nylon. Plug-in ensures years of maintenance free performance.

Plug-in Fixed Height Pedestals
To be used in conjunction with the plug-in pedestal bases listed below. Posts recess into base by 53mm.

Features

• Separate bases provide multiple seating positions and allow simple removal of pedestal to maximise cockpit space

• 60mm diameter pedestal post

• Aluminium, stainless steel and plastic construction

• 360 degrees lockable friction swivel
  Specifications:


  Code	Description	Overall Height mm
  183150	Post only	415
  183152	Post only	493
  183154	Post only	645
  183156	Post only	796
  183160	Swivel and post	438
  183162	Swivel and post	516
  183164	Swivel and post	668
  183166	Swivel and post	819

  N.B. Pedestal posts sold separately for use with 182104 seat slide
