Comfort and control

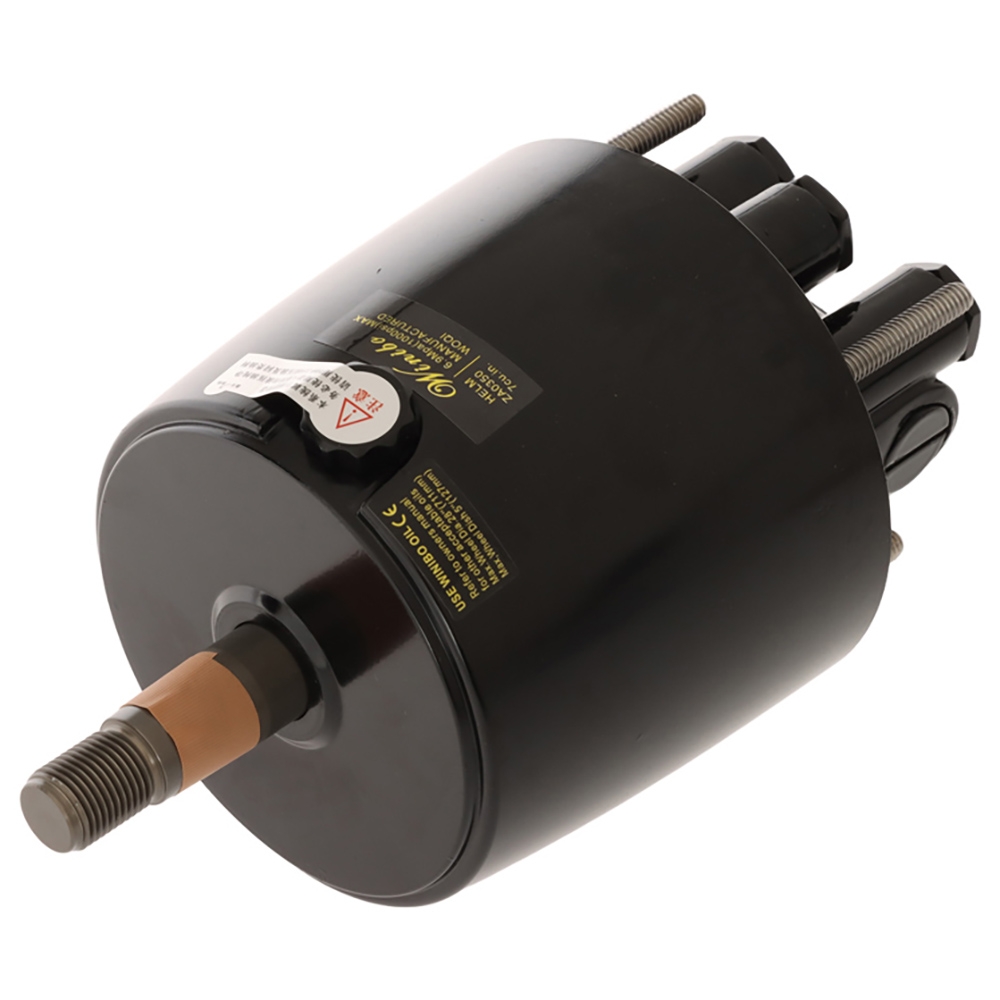

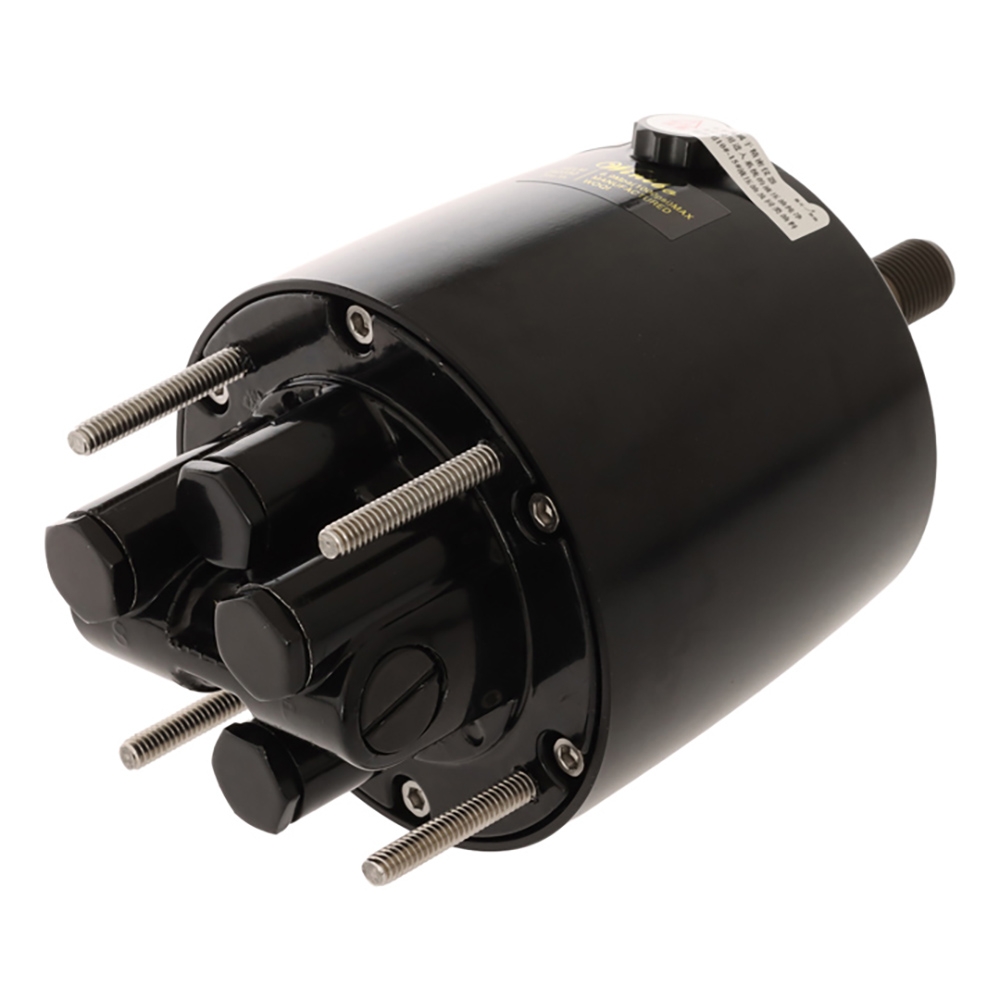

Make handling hand-torque engines and high-speed boats easy and safe. This Hydraulic Steering Kit is designed for outboards up to 300HP. It includes a steering wheel, fuel pump, cylinder, tube and connecting accessories.
Hydraulic Steering Kit Features:
- Hydraulic steering kit
- Suitable for outboards up to 300HP
- Includes steering wheel, fuel pump, cylinder, tube and connecting accessories
Hydraulic Steering Kit Specifications:
- Displacement: 27cc/rev
- Cylinder volume: 141.1cc
- Cylinder output force: 468kgf
- Max pressure: 69kgf/cm2
- Strode: 214mm
- Bore tube diameter: 35mm
- Piston rod diameter: 19mm
- Count of plungers: 7
- Steering wheel diameter: 32-54cm
- Hardover to hardover: 5.5 times
- Weight: 13.5kg
