Consistent cooling for peak engine performance
Keep your classic Yamaha outboard running smoothly with the SUNCHEV Water Pump Repair Kit. Designed as a direct replacement kit, it is built to factory specifications and includes all essential components needed to restore proper water flow. Regular replacement of water pump parts helps prevent overheating, protects engine components, and ensures reliable performance on the water.
SUNCHEV Water Pump Repair Kit Features:
- Direct replacement for Yamaha factory OEM part numbers 692-W0078-02, 692-W0078-02-00, 692-W0078-01, 692-W0078-01-00, and 692-W0078-00
- Designed for classic three-cylinder 2-stroke Yamaha mid-range outboard motors
- Complete rebuild kit including impeller, wear plate, insert cup, seals, and installation hardware
- Marine-grade construction using neoprene, synthetic rubber, and stainless steel for corrosion and wear resistance
SUNCHEV Water Pump Repair Kit Specifications:
- Part Number: 692-W0078-02
- Blades: 6
- Aftermarket Cross-Reference: Sierra 18-3370 / Mallory 9-48602
- Compatibility: Yamaha 2-Stroke Outboard Engines 60HP-90HP
- Compatible Yamaha 2-Stroke Engines:
- 60HP Series: 60TLR models (2004-2005)
- 70HP Series: Standard 3-cylinder models (2004-2009)
- 75HP Series: Including C75, E75, and P75 configurations (1994-1996)
- 80HP Series: Standard 2-stroke variants (1997)
- 85HP Series: Including C85 and CV85 configurations (1989-1996)
- 90HP Series: Heavy-duty 3-cylinder platforms (1984-2009)

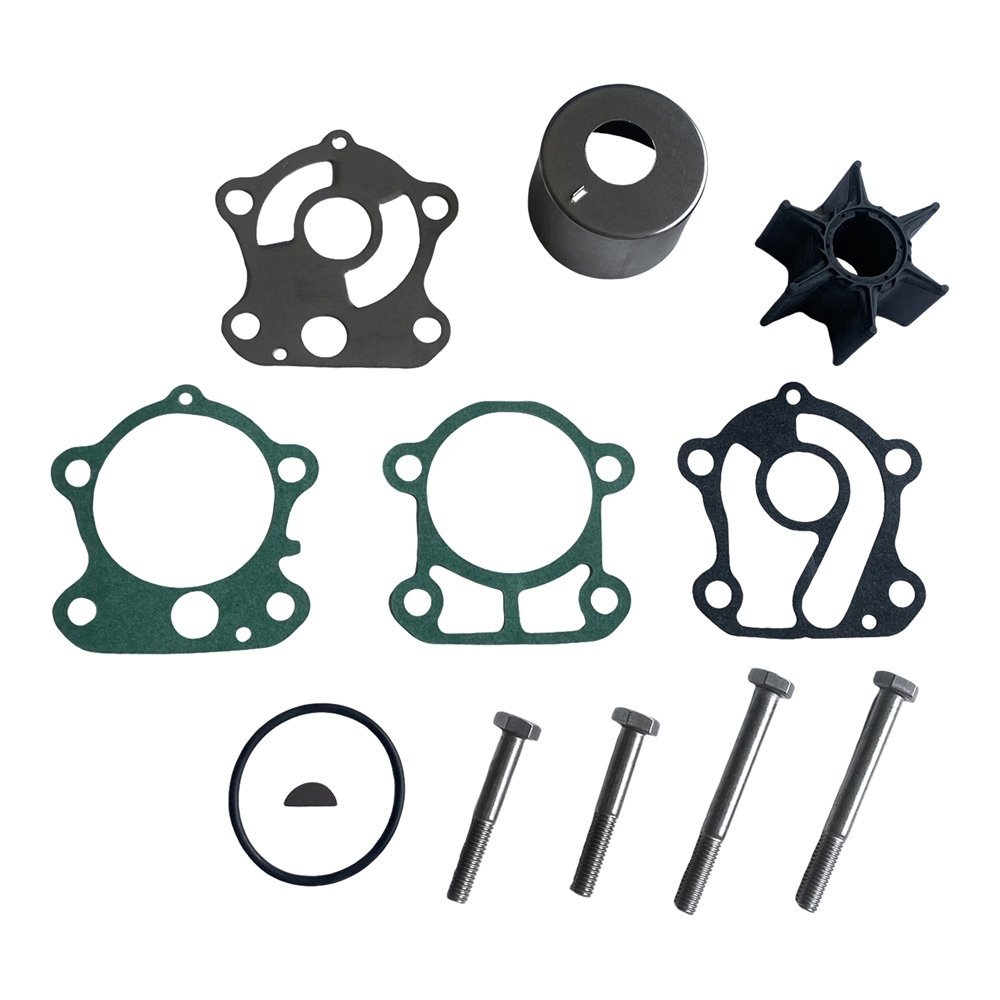

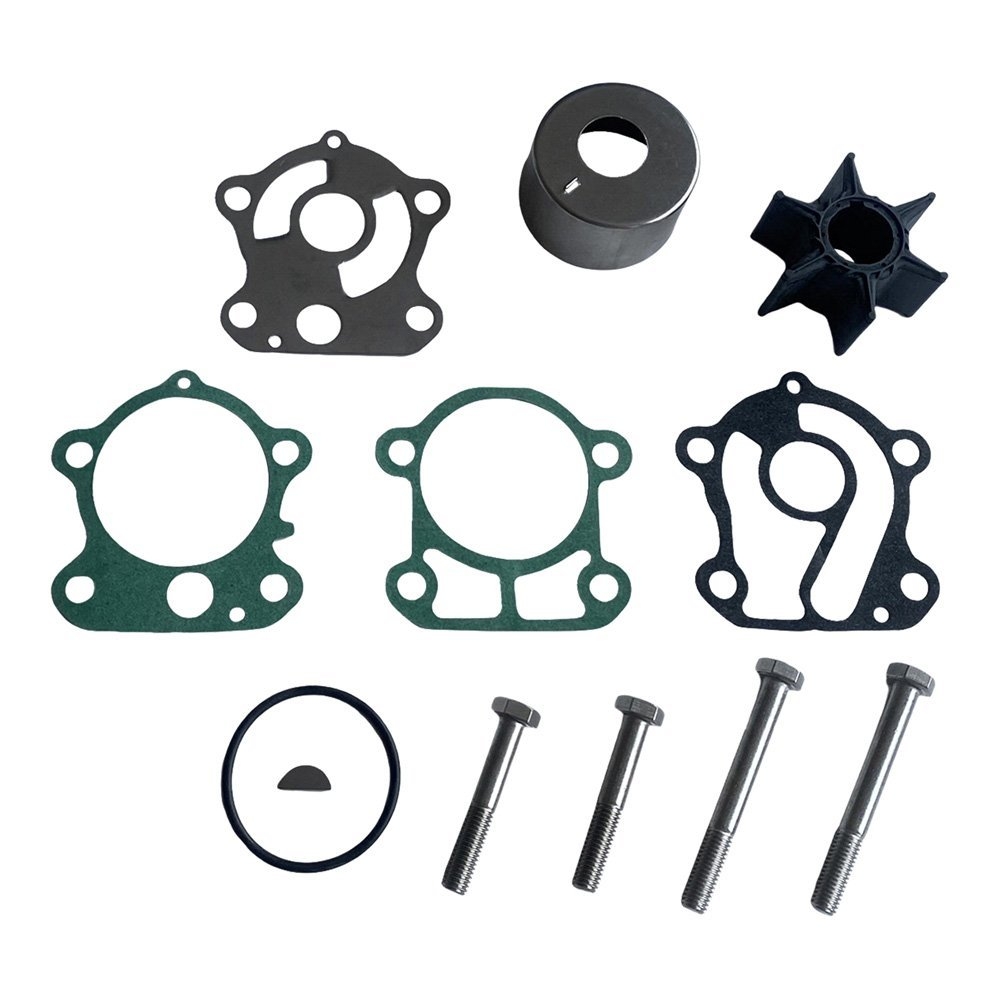

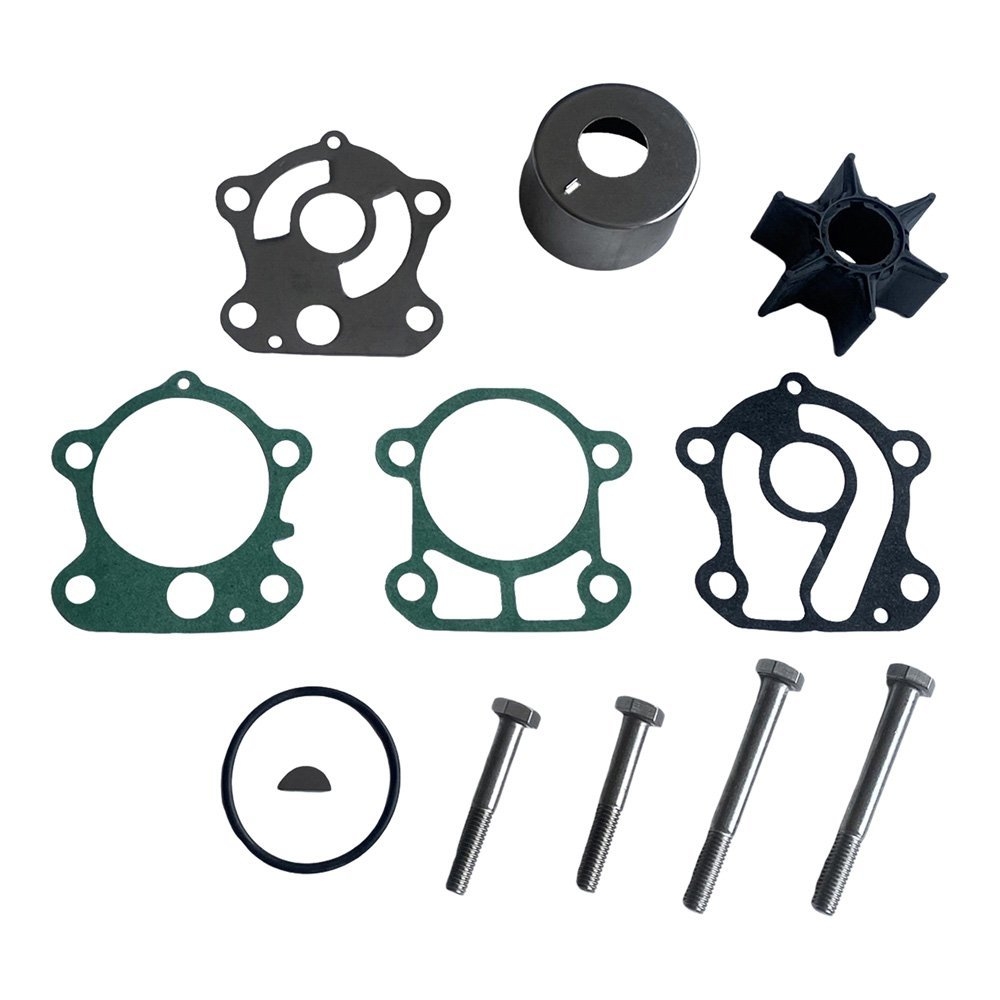

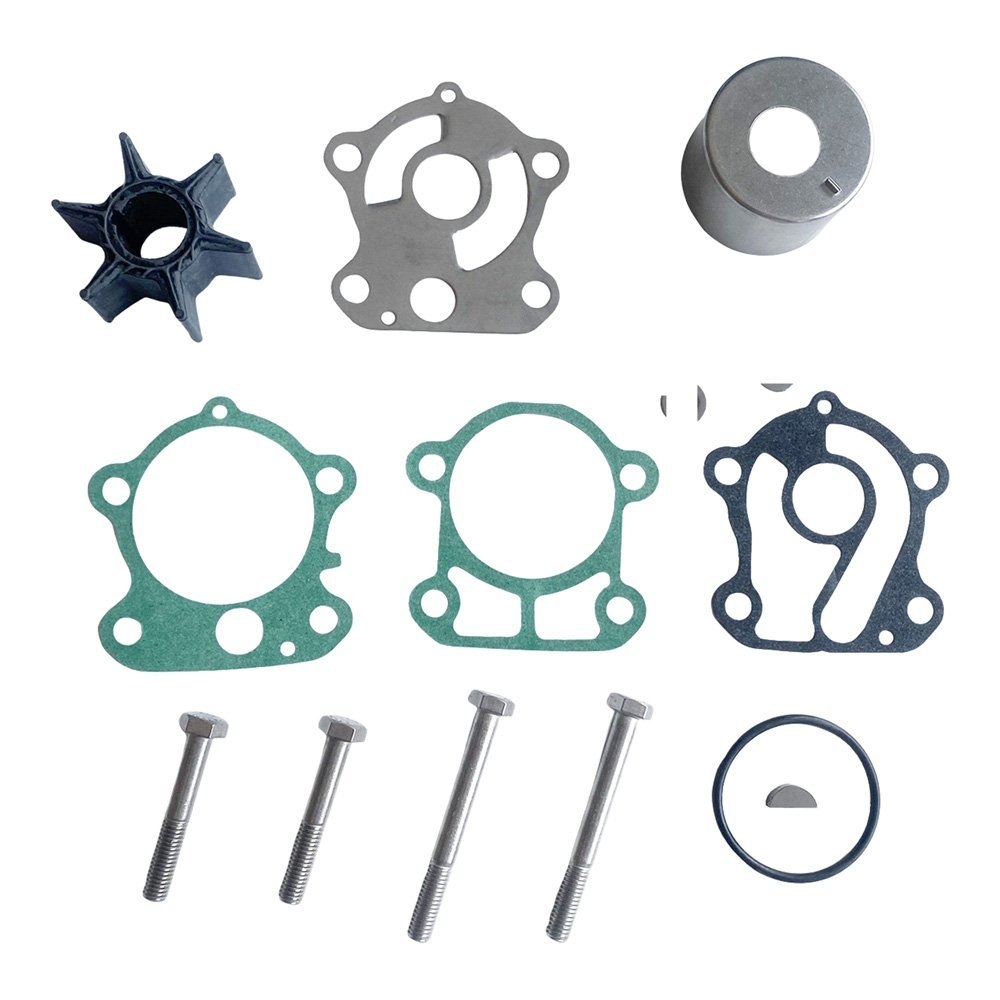

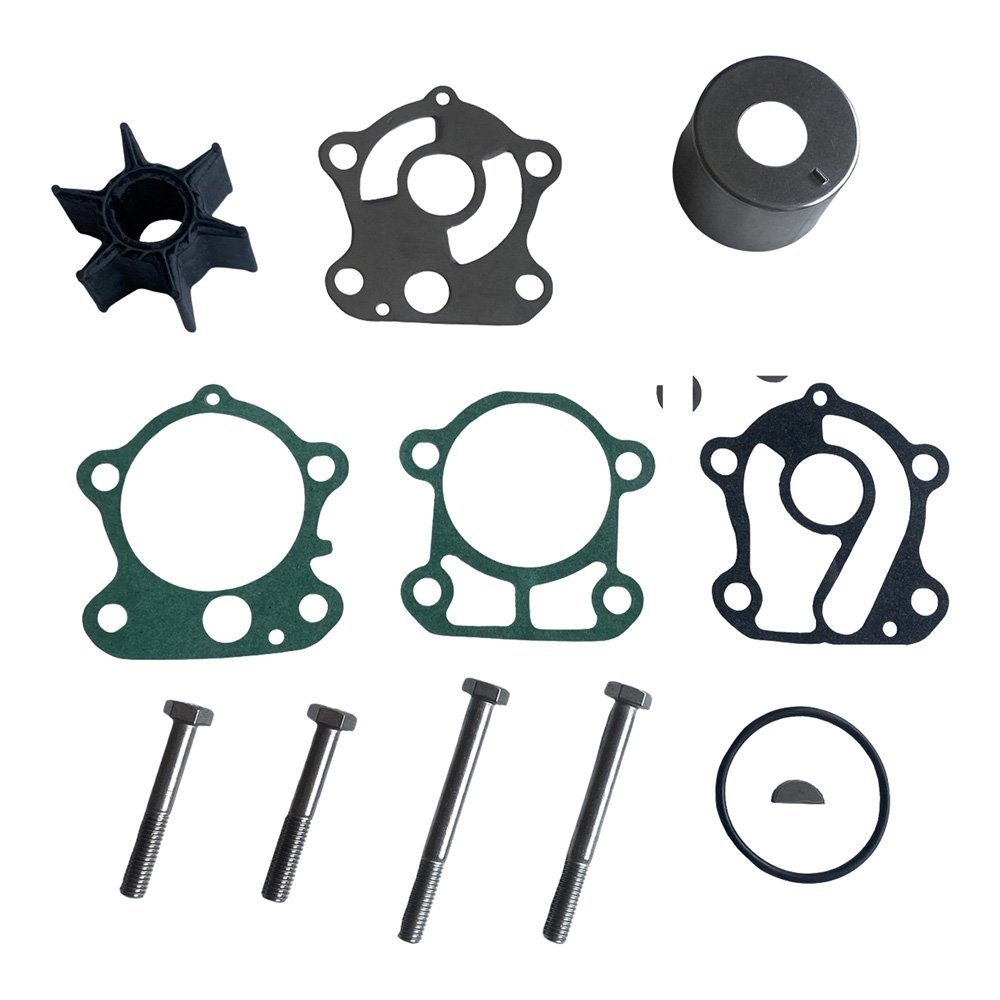

What's in the Kit:
- 1 x Water Pump Impeller (688-44352-03 / 688-44352-00)
- 1 x Stainless Steel Cartridge Cup Insert (688-44322-00)
- 1 x Cartridge Outer Wear Plate (688-44323-00)
- 1 x Water Pump Housing Gasket (688-44315-A0)
- 1 x Guide Plate Casing Gasket (688-44316-A0)
- 1 x Base Plate Cartridge Gasket (688-44324-A0)
- 1 x Water Pump Housing O-Ring (93210-46044)
- 1 x Woodruff Drive Shaft Key (90280-04M04)
- 2 x Short Hex Head Casing Bolts (90119-08M13)
- 2 x Long Hex Head Casing Bolts (90119-08M16)
