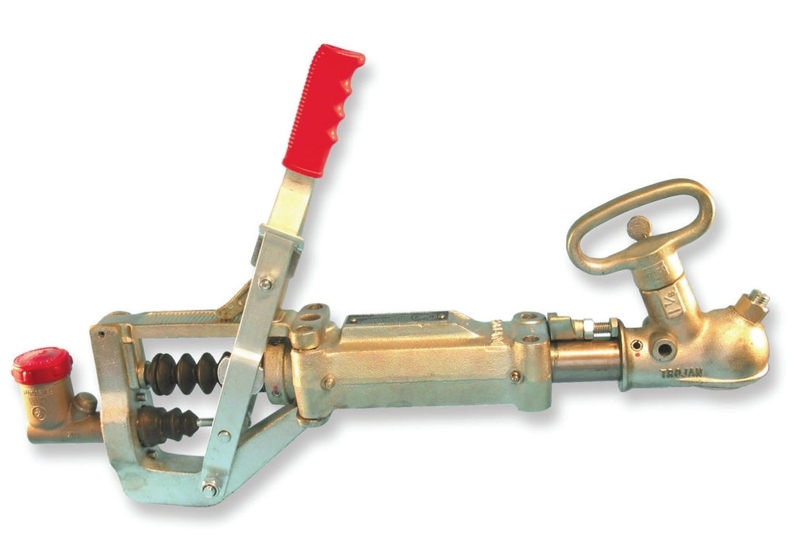

Trojan Braked Duofit Oil Dampened Override Hydraulic Coupling 2500kg 3/4 Cylinder

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Trailparts Braked Couplings

Trailparts Braked Couplings
Details

Details

Tow with a piece of mind

The Trojan Braked Duofit Oil Dampened Override Hydraulic Coupling is the only coupling that complies fully with the New Zealand standard for towball couplings NZS5232:1993 in all respects. This duofit coupling is designed to suit 50mm and 1 7/8" towballs and the 2500kg rating is suitable for trailers with a GVM of ever 2500kg. It's made of high grade cast iron and coated significantly with corrosion protection for long term maintenance-free use. This coupling is ideal for use on horse floats and caravans.

Trojan Braked Duofit Oil Dampened Override Hydraulic Coupling Features:
  • Part Number: T201670
  • Braked
  • Rating: 2500kg
  • Cylinder Size: 3/4in
  • Duofit: Can be fitted to both 50mm and 1 7/8" towballs
  • Material: High grade cast iron and coated with corrosion protection
  • Ideal for use on horse floats and caravans
  • Measurement between bolt hole centres: 182mm (length) x 54mm (width)
  • Mounting by way of four 12mm high tensile bolts is recommended
  • Complies with NZ standard 5232-1993 when used in the 50mm mode
