Up (Suspension) ▲

Trailparts 700mm Long Series Springs

#9047870
Warranty Badge - 12-Months
Check Below for Availability

Seen a lower price? Ask us to beat it

Product Name Price Qty
Trailparts 700mm Long Series Springs 5L 1500kg Painted

Ships May 1 - May 11

NOW $299.00
Trailparts 700mm Long Series Springs 6L 1800kg Painted

Ships May 1 - May 11

NOW $319.00
Trailparts 700mm Long Series Springs 7L 2100kg Painted

Ships May 1 - May 11

NOW $329.00
Trailparts 700mm Long Series Springs 8L 2400kg Painted

Ships May 1 - May 11

NOW $349.00
Trailparts 700mm Long Series Springs 5L 1500kg Galvanised

Ships May 1 - May 11

NOW $409.00
Trailparts 700mm Long Series Springs 6L 1800kg Galvanised

Ships May 1 - May 11

NOW $429.00
Trailparts 700mm Long Series Springs 7L 2100kg Galvanised

Ships May 1 - May 11

NOW $469.00
Trailparts 700mm Long Series Springs 8L 2400kg Galvanised

Ships May 1 - May 11

NOW $489.00
Trailparts 700mm Long Series Springs Set 5L 1500kg Painted

Ships May 1 - May 11

NOW $419.00
Trailparts 700mm Long Series Springs Set 7L 2100kg Painted

Ships May 1 - May 11

NOW $459.00
Trailparts 700mm Long Series Springs Set 8L 2400kg Painted

Ships May 1 - May 11

NOW $479.00
Trailparts 700mm Long Series Springs Set 5L 1250kg Zinctech Round U-Bolt

Out of Stock

Notify me when back in stock

NOW $309.00

Sold Out
Trailparts 700mm Long Series Springs Set 6L 1500kg Zinctech Round U-Bolt

Out of Stock

Notify me when back in stock

NOW $329.00

Sold Out
Trailparts 700mm Long Series Springs Set 7L 2100kg Zinctech

Ships May 1 - May 11

NOW $609.00
Trailparts 700mm Long Series Springs Set 8L 2400kg Zinctech

Ships May 1 - May 11

NOW $629.00
Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

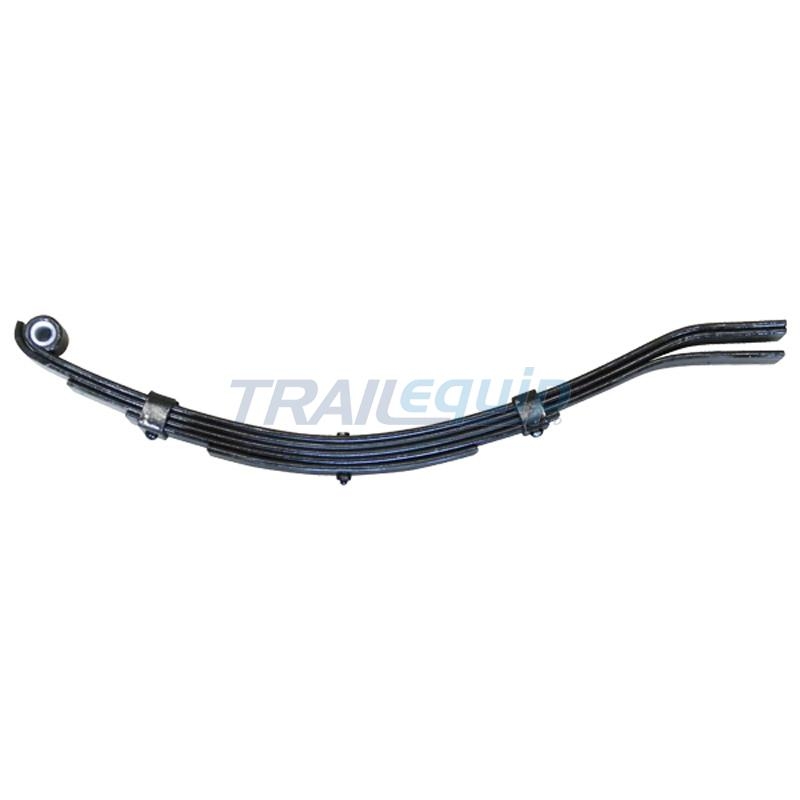

Trailparts 700mm Long Series Springs

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Trailparts Spring Bushes

Trailparts Spring Bushes
Details

Details

High strength, long lasting performance

Trailparts 700mm Long Series Springs are multi-leaf springs, available in either painted or galvanized finishes. These can be purchased individually as pairs or as sets with a complete fitting kit. Fitting kits can include hangers, slippers, eye-bolts, plates and U-bolts with galvanized nyloc nuts/washers.

Trailparts 700mm Long Series Springs Features:
  • Multi-leaf
  • Spring leaves dimensions: 50mm wide x 7mm thick
  • Durable, strong construction
  • High strength, long lasting performance

Trailparts 700mm Long Series Springs Specifications:
Model Leaves Capacity Finish Type Size Spring Leaves (Width x Thickness)
S3205L 5 1500kg/pr Painted Springs Only 700mm 50x7mm

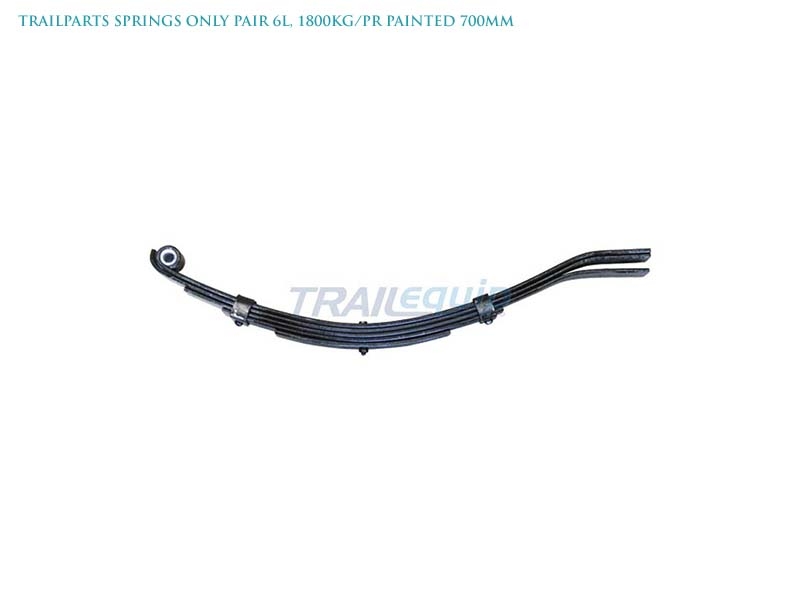

S3206L 6 1800kg/pr Painted Springs Only 700mm 50x7mm
S3207L 7 2100kg/pr Painted Springs Only 700mm 50x7mm
S3208L 8 2400kg/pr Painted Springs Only 700mm 50x7mm
S3225L 5 1500kg/pr Galvanised Springs Only 700mm 50x7mm
S3226L 6 1800kg/pr Galvanised Springs Only 700mm 50x7mm
S3227L 7 2100kg/pr Galvanised Springs Only 700mm 50x7mm
S3228L 8 2400kg/pr Galvanised Springs Only 700mm 50x7mm
S3215L 5 1500kg/pr Painted Long Series Complete Set 700mm 50x7mm

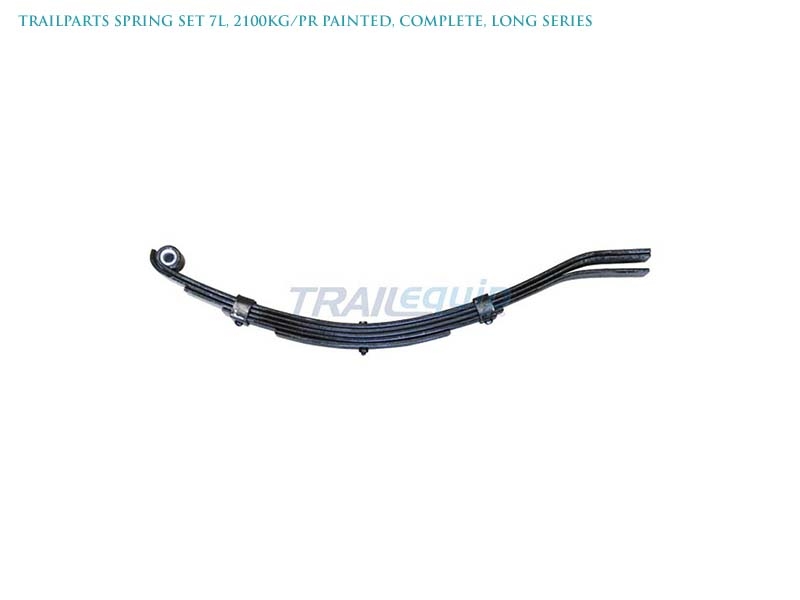

S3217L 7 2100kg/pr Painted Long Series Complete Set 700mm 50x7mm
S3218L 8 2400kg/pr Painted Long Series Complete Set 700mm 50x7mm

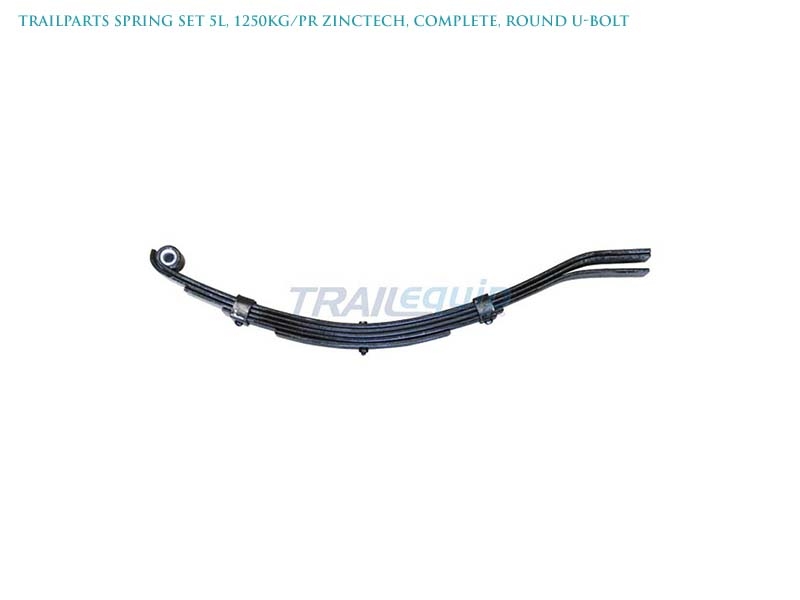

S3235R 5 1250kg/pr Zinctech Round U-Bolt Complete Set 700mm 50x7mm
S3236R 6 1500kg/pr Zinctech Round U-Bolt Complete Set 700mm 50x7mm
S3237L 7 2100kg/pr Zinctech Long Series Complete Set 700mm 50x7mm
S3238L 8 2400kg/pr Zinctech Long Series Complete Set 700mm 50x7mm
Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
