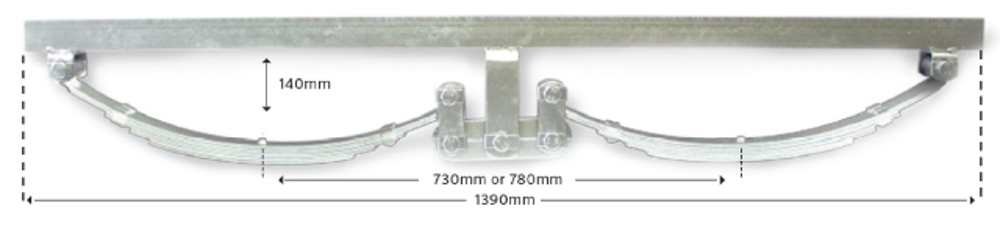

Trojan Galvanised Tandem Mounted Suspension 3500kg Pair

The item you're looking at is currently unavailable or has limited stock, how about this one instead?

Trojan Galvanised U Bolt Plate

Details

Details

These Suspensions are designed to be fitted to Trailers where a superior ride is required; This includes Horse Floats. Available as a kit which can be welded direct to the Trailer chassis or supplied assembled fitted to a angle iron frame. The kit does not include the frame.



Part No:	Capacity:	Leaves:	Fitments:	Finish:
T871500	2500kg	5 - 50 x 6mm	Unmounted	Bare Steel
T871600	2500kg	5 - 50 x 6mm	Mounted and Assembled	Bare Steel
T871700	3500kg	6 - 50 x 6mm	Unmounted	Bare Steel
T871800	3500kg	6 - 50 x 6mm	Mounted and Assembled	Bare Steel
T8718GALV	3500kg	6 - 50 x 6mm	Mounted and Assembled	Galv Frame

Specifications:



Item:	Spare Part No:	Description:	Notes:
1	T869700	Equalizer / Centre Hanger	1 - per side
2	TR86050	Spring Hanger	2 - per side
3	TR8608A	Shackle Nut - M16	7 - per side
4	T812711	Centre Shakle Bolt - M16 x 95mm	1 - per side
5	T812713	Shackle Bolts - M16 x 85mm	6 - per side
6	T871400G	Link Plates	4 - per side
7	T276010	Equalizer Bar - Includes Bushed	1 - per side
8	T871200	Bushes - suit springs and Equalizer	7 - per side
9	T260050D1	Spring - 5 Leaf - 610mm - Eye to Eye	2 - per side
	T260060D	Spring - 6 Leaf - 610mm - Eye to Eye	2 - per side
Not Illust.	T274009	Lock Tab Kit - Includes tab for both sides

Bulk Items Shipping

This item is classified as a Bulk item and must be processed by a specialised courier.
Please therefore allow an extra 1-7 days above the usual shipping time.

Shipping Rates for Bulk Items
