In-line protection from water backflow or siphoning
The TruDesign Non-Return Check Valve is the reliable, no-fuss solution for keeping your boat, RV or motorhome plumbing system running exactly as it should. Made from UV-stabilised, glass-reinforced nylon, these valves are built to handle our harsh outdoors and marine environment, ensuring they won't crack or degrade over time. Whether you're protecting your system against siphoning or unwanted backflow, this valve offers complete peace of mind with its robust, "water hammer safe" design that easily absorbs sudden pressure spikes in your pipes. Plus, with a low cracking pressure for excellent flow rates and a clear white arrow to guide your installation, getting your plumbing sorted is quick and error-free. Grab yours today and ensure your water system stays trouble-free.
TruDesign Non-Return Check Valve Features:
- UV-stabilised glass-reinforced nylon
- High impact and tensile strength: "water hammer safe" and insensitive to pressure shocks in the pipeline
- Stainless spring: no corrosion issues or risk of internal valve staying open
- Low cracking pressure: minimal pressure required to open the valve with minimal restriction on flowrate
- In line fitting: minimal installation room needed and no other fittings required
- Printed white arrow (opposite logo side): quick and easy identification of water flow direction
- Colour: Black
TruDesign Non-Return Check Valve Specifications:
| Part Number | Size (in) | Size (mm) | Connections | Weight |
|---|---|---|---|---|

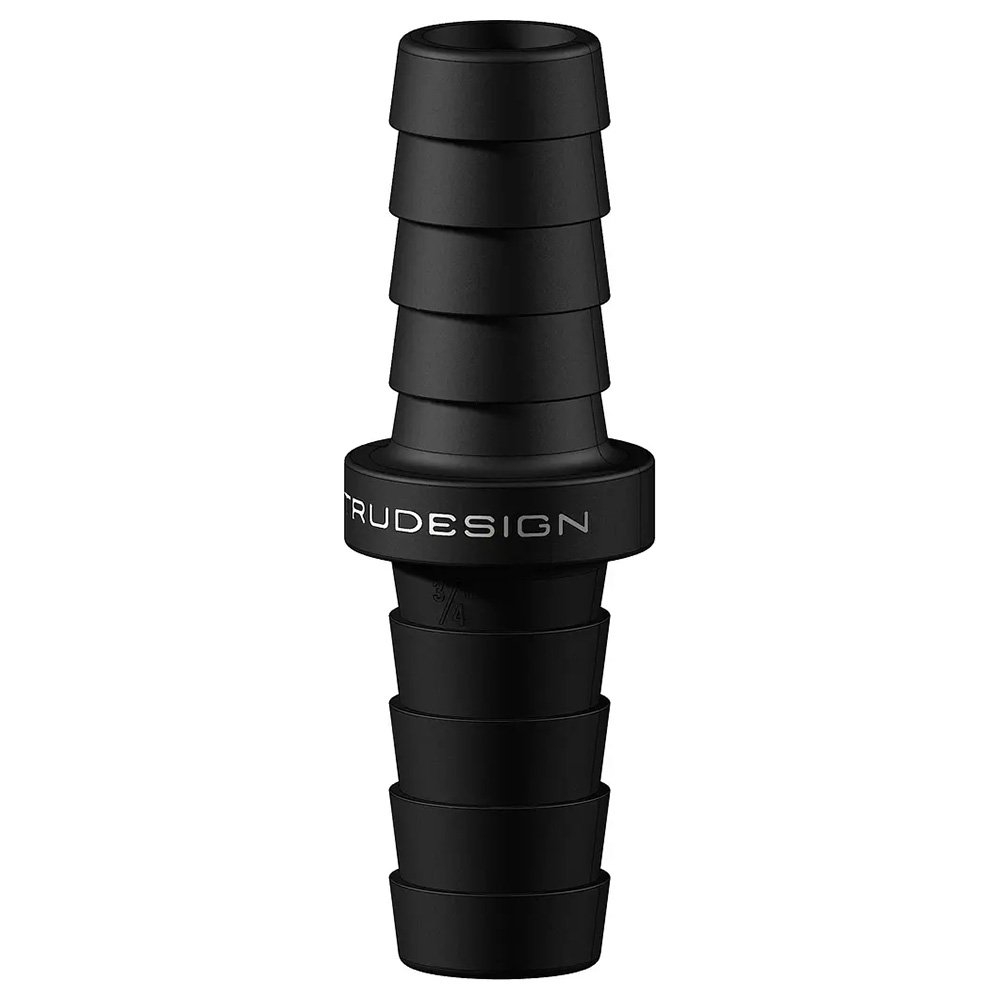

| 90845 | 3/4" | 19mm | Male Tail 3/4" (19mm) | 16g |
| 90846 | 1" | 25mm | Male Tail 1" (25mm) | 33g |
| 90951 | 1 1/8" | 28mm | Male Tail 1 1/8" (28mm) | 46g |
| 90847 | 1 1/4" | 32mm | Male Tail 1 1/4" (32mm) | 49g |
| 90848 | 1/2" | 38mm | Male Tail 1 1/2" (38mm) | 68g |
| 90849 | 2" | 50mm | Male Tail 2" (50mm) | 119g |

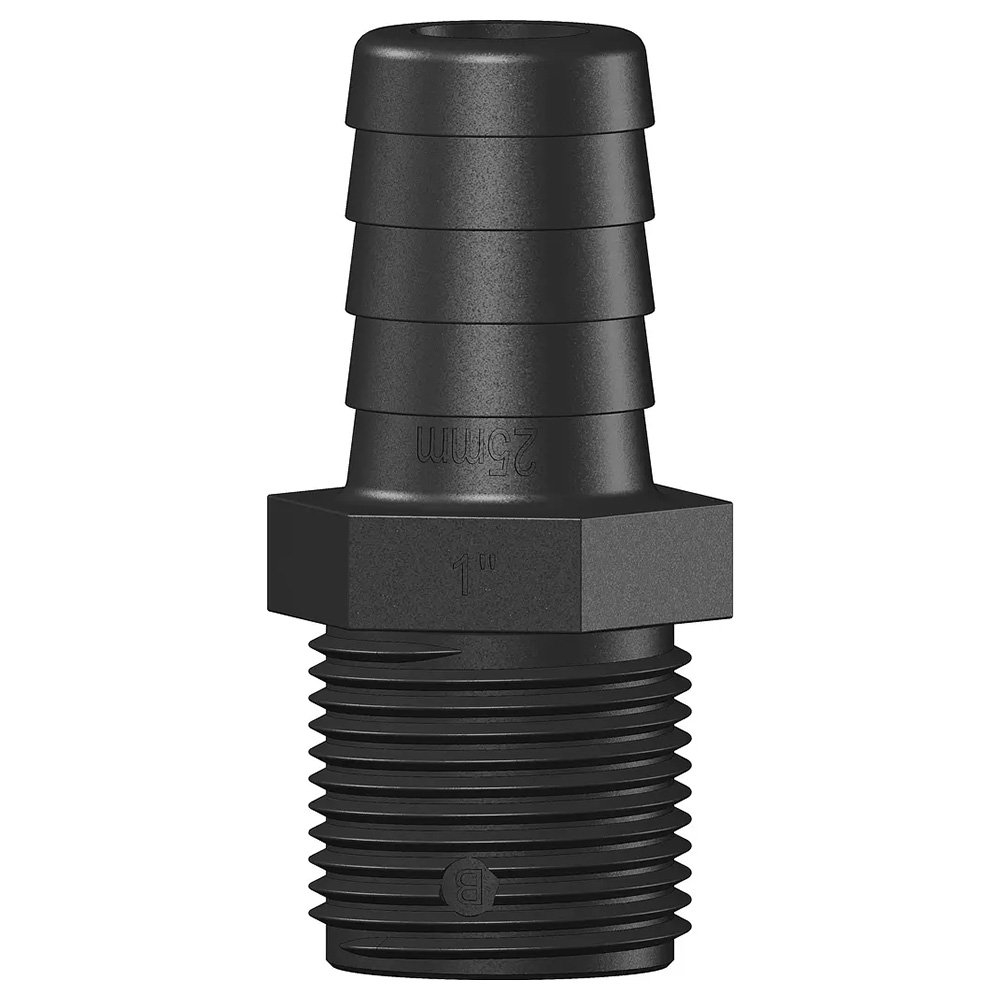

| 91037 | 1" | 25mm | Male Tail 1" (25mm) / Male Thread 1" BSP (25mm) | 33g |

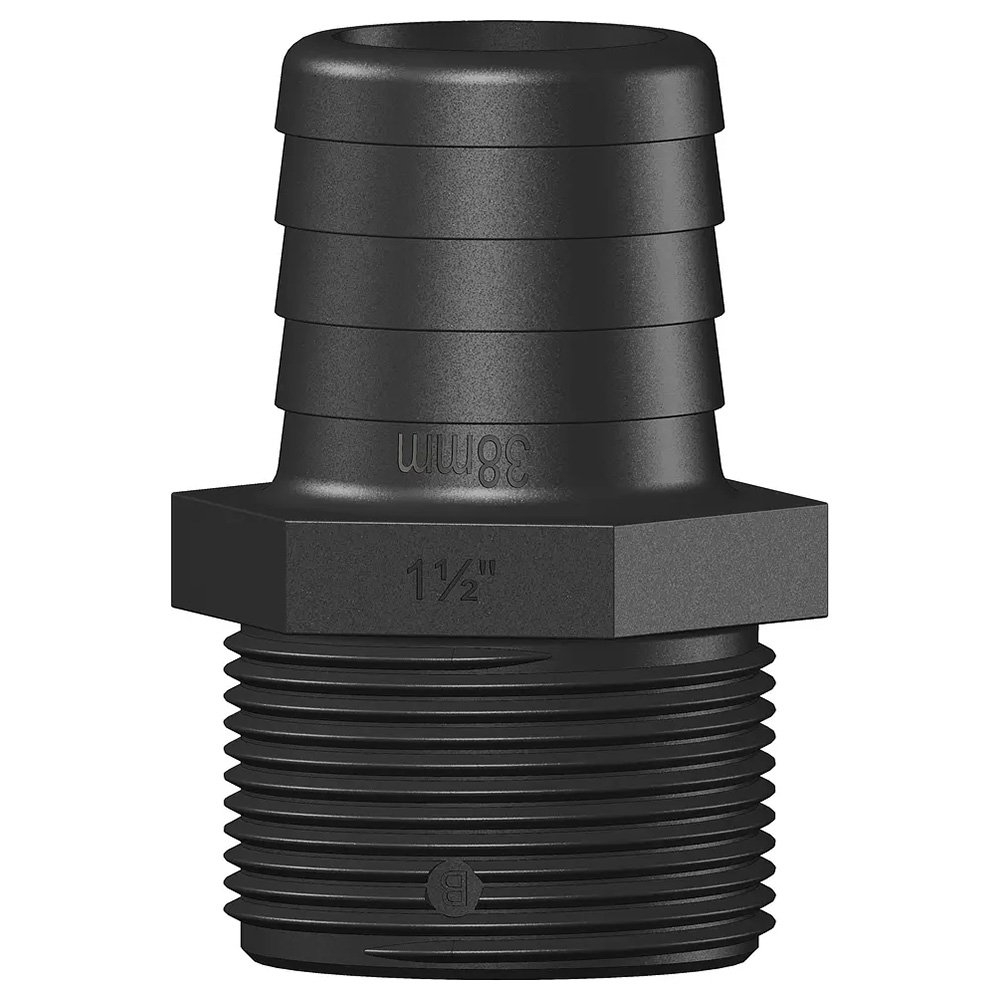

| 91039 | 1 1/2" | 38mm | Male Tail 1 1/2" (38mm) / Male Thread 1 1/2" BSP (38mm) | 64g |
