Special Order
VETUS Rimdrive Thruster 160kgf 48V
Deliver to:
Bulk Item
Auckland 1026,
NZ
Estimated:
$79.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information

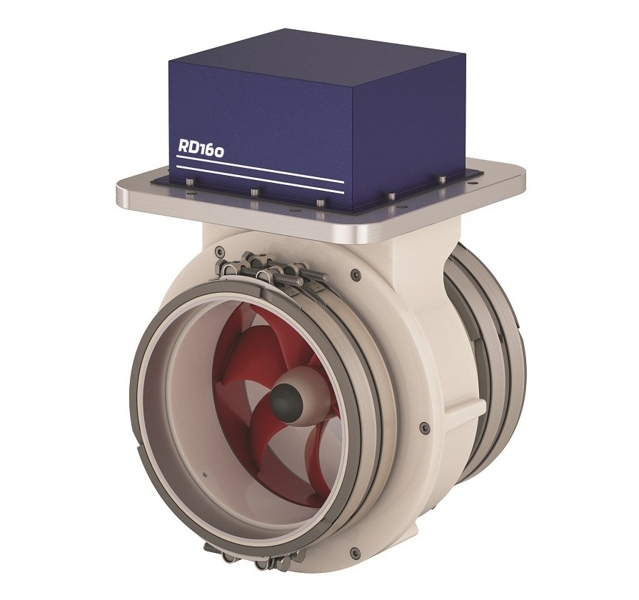

The new VETUS rimdrive is an exciting and innovative development in
bow thruster design.

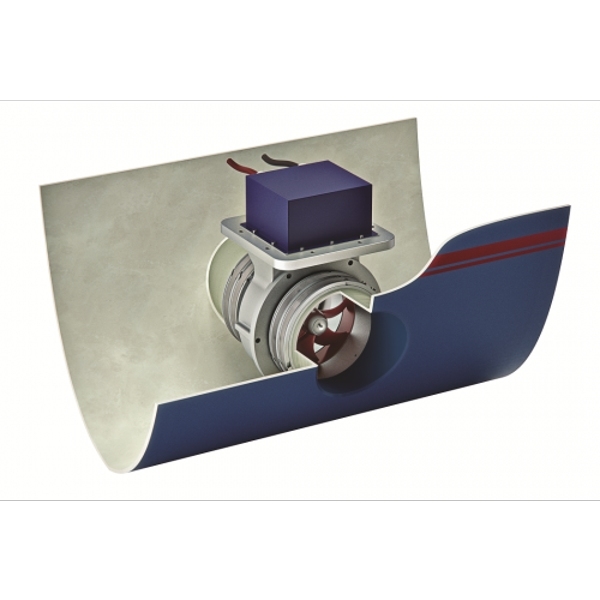

In contrast with conventional thrusters, the electric motor does not take up valuable space inside the boat. Instead, the propeller forms the rotating part of the electric motor (rotor) and the fixed winding (stator) is mounted in the tunnel.
This results in a very compact and self contained thruster.
Due to careful design of the propeller blades and the ring which encloses them, this new rimdrive is virtually cavitation free and consequently, virtually silent.
The familiar turbulence experienced with conventional thrusters is absent and only a gentle murmur can be heard when in operation.
The VETUS rimdrive features proportional control as standard. This means that the correct amount of thrust is always available to the helmsman, in order to cope with different manoeuvres and wind conditions.
Furthermore, the rimdrive offers unlimited working time, with the only limitation being the capacity of the battery bank. With the innovative tunnel within a tunnel design, the propeller can be easily exchanged without having to dismantle the entire rimdrive.
Specifications:
Product Data Sheet
In contrast with conventional thrusters, the electric motor does not take up valuable space inside the boat. Instead, the propeller forms the rotating part of the electric motor (rotor) and the fixed winding (stator) is mounted in the tunnel.
This results in a very compact and self contained thruster.
Due to careful design of the propeller blades and the ring which encloses them, this new rimdrive is virtually cavitation free and consequently, virtually silent.
The familiar turbulence experienced with conventional thrusters is absent and only a gentle murmur can be heard when in operation.
The VETUS rimdrive features proportional control as standard. This means that the correct amount of thrust is always available to the helmsman, in order to cope with different manoeuvres and wind conditions.
Furthermore, the rimdrive offers unlimited working time, with the only limitation being the capacity of the battery bank. With the innovative tunnel within a tunnel design, the propeller can be easily exchanged without having to dismantle the entire rimdrive.
- continuous operation
- wireless control
- interchangeable propellers
- virtually silent operation
- Supply voltage : 24 Volt. Truster Voltage : 48 Volt
Specifications:
| Voltage (V) | 48 V |
|---|---|
| Ignition protection | No |
| Thrust (N / kgf) | 0 - 1600 (0 - 160) |
| Power (kW) | 9.5 |
| Motor, reversible D.C. | Yes |
| Internal tunnel diameter (mm) | 250 |
| Weight (kg) | 37 |
| Current consumption (A) | 320 |
| Continuous operating time (min) | Unlimited running time |
| Max. operating time (minutes) | Unlimited running time |
| Main fuse 'slow blow' (A) | 350 |
| Batteries 12 V, min./max. Ah | 4 x 75 |
| Battery cables, length pos./neg. cables (m/mm) | 0 - 29 / 70 |
| Battery main switch: model BATSW / type BPMAIN | 250 |
| Size A in mm, see drawing | No |
| Size B in mm, see drawing | No |
| Size C in mm, see drawing | No |
| Size D min./max. in mm, see drawing | No |
| Size E in mm, see drawing | No |
| Size F, diameter in mm, see drawing | No |
| Size G min. in mm, see drawing | No |
| Size H, diameter in mm, see drawing | No |
Product Data Sheet
