Heavy-duty vertical windlass with capstan drum for large vessels

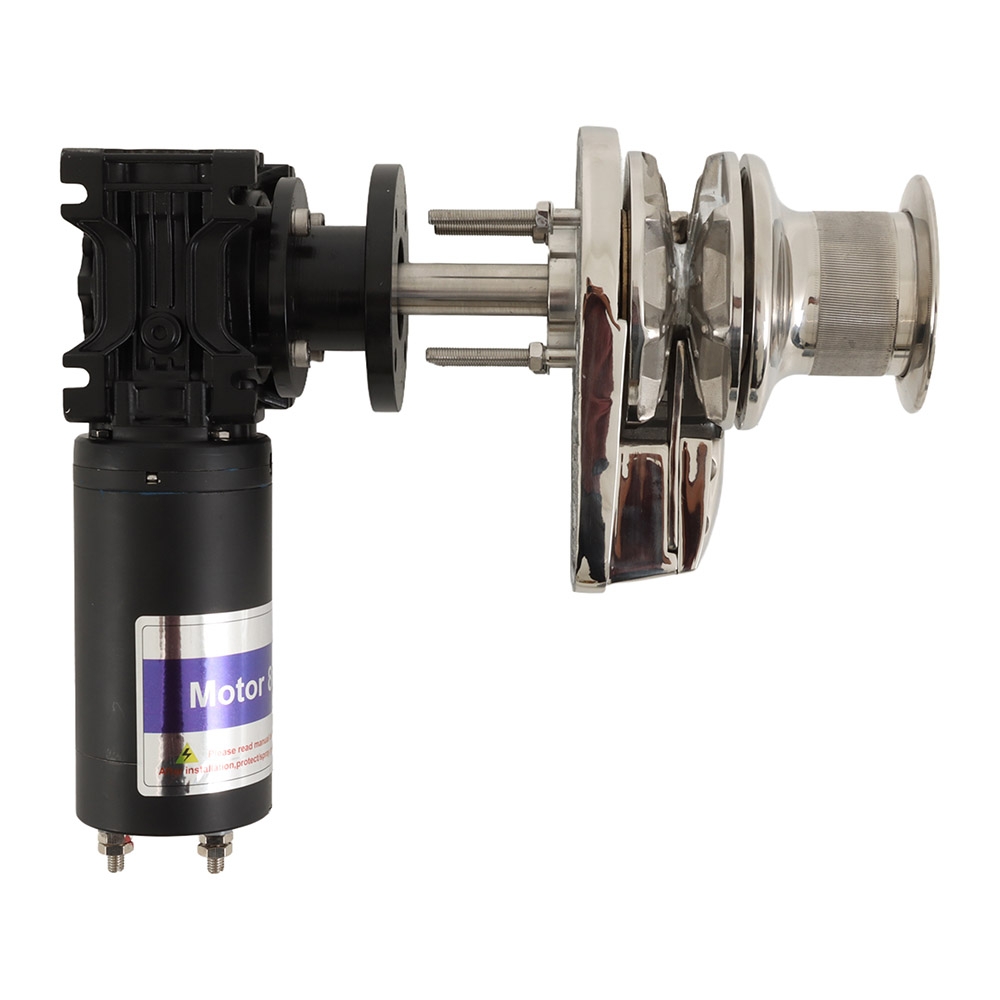

The Abel Vertical Anchor Windlass with Capstan is a powerful and practical anchoring solution for powerboats and sailboats. The vertical design helps keep deck space clear, while the built-in capstan (warping) drum gives you extra flexibility for anchoring and general line handling.

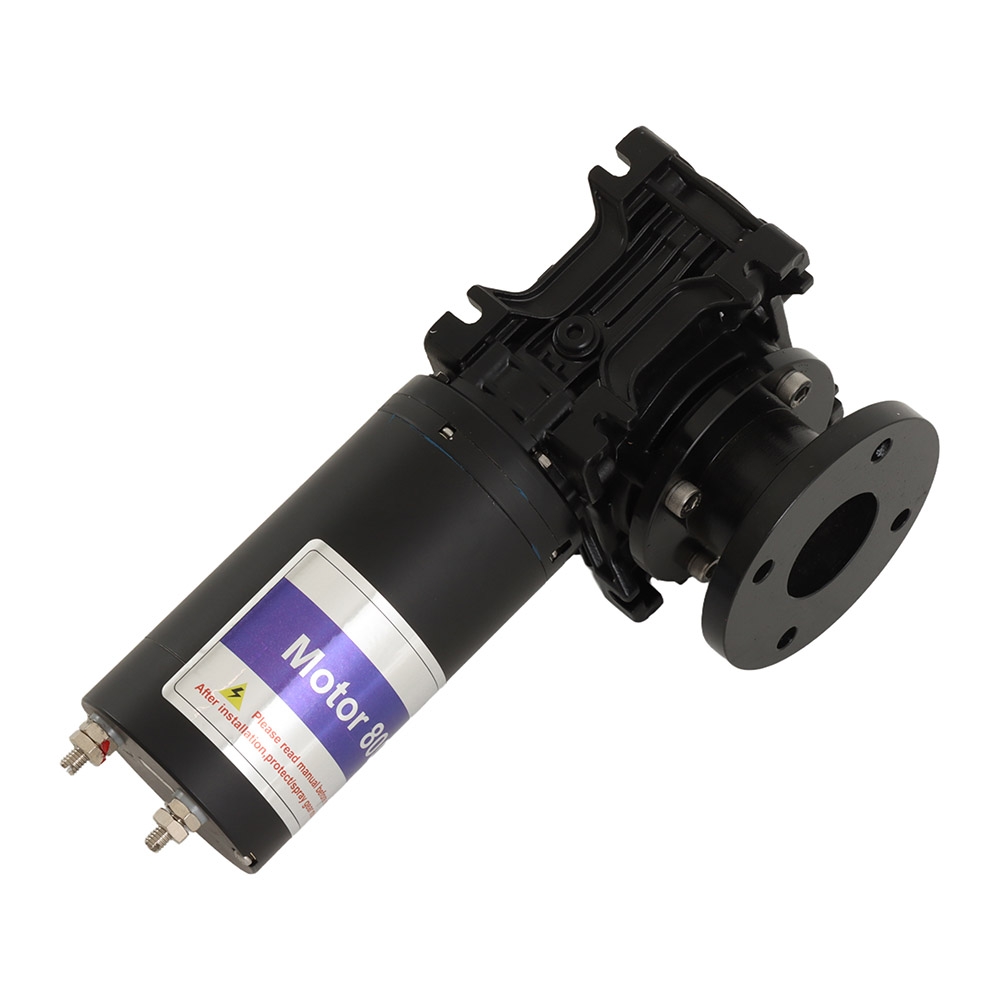

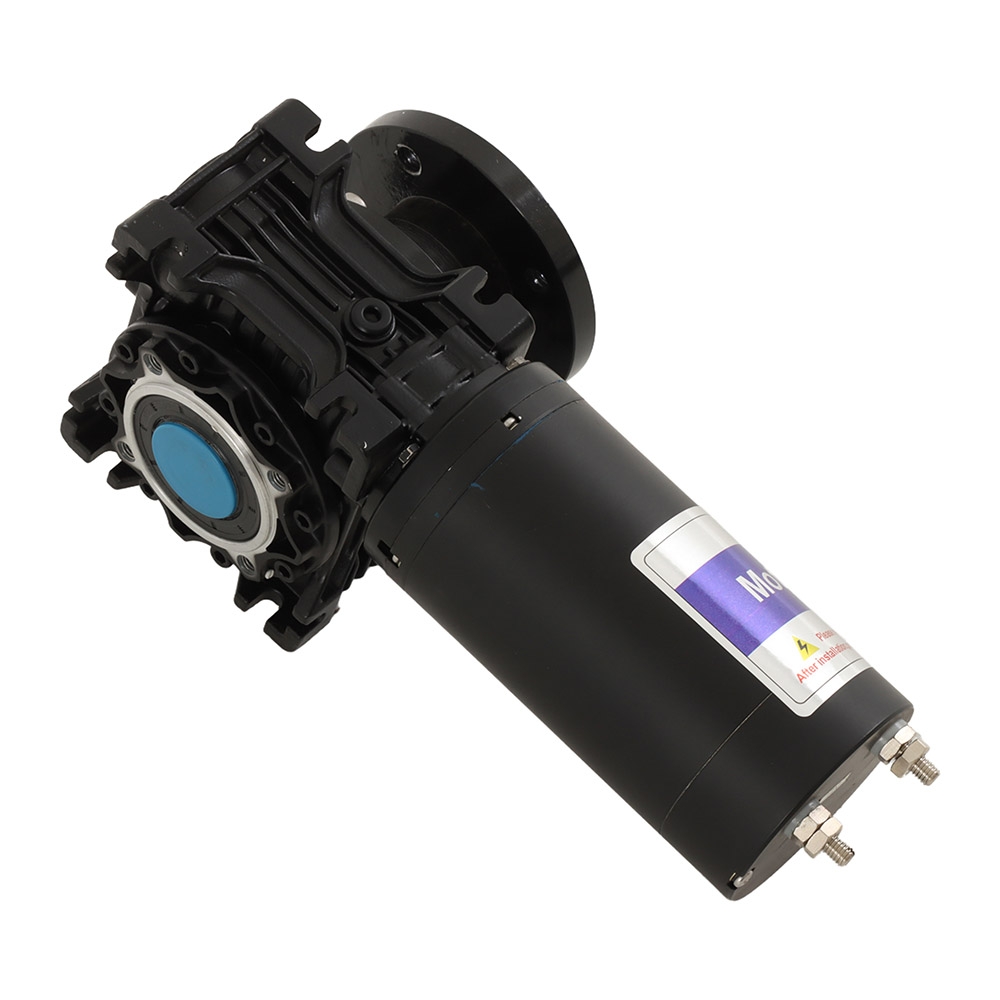

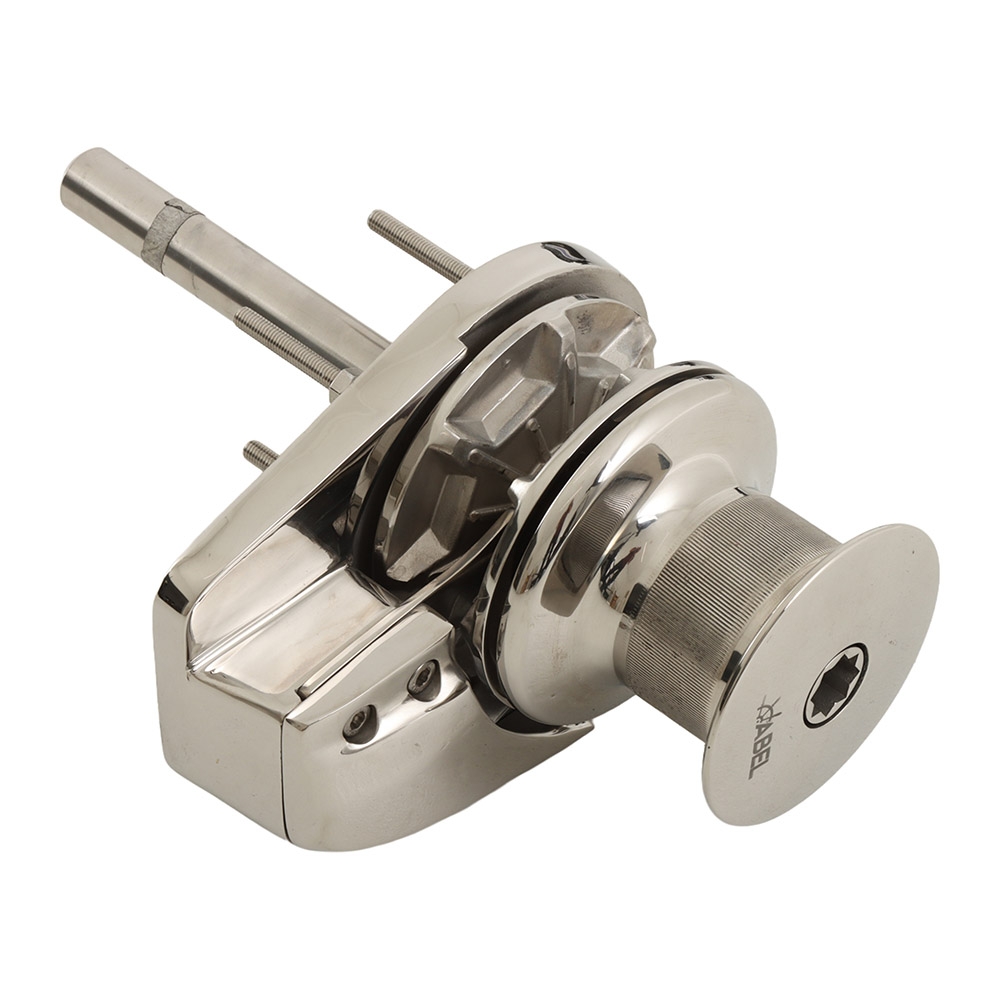

Constructed from 316 stainless steel, the rope and chain gypsy delivers smooth, reliable control when lowering or retrieving your anchor. A multi-fit marine-grade alloy gearbox and high-torque 800W motor ensure consistent performance under heavy load. Suitable for use with 8-10mm DIN766 chain and 12-14mm rope.
Abel Vertical Anchor Windlass with Capstan Features:
- Compact vertical design saves deck space
- Built-in capstan (warping) drum for flexible line handling
- 316 stainless steel for smooth operation
- Multi-fit marine-grade alloy gearbox
- High-torque 800W motor
- Compatible with 8mm or 10mm DIN766 chain and 12-14mm rope
Abel Vertical Anchor Windlass with Capstan Specifications:
- Model: YD611H
- Motor: 800W 12V
- Max Pull: 700kg
- Max Working Load: 280kg
- Line Speed: 20m/min
- No Load Absorption: 100A
- Weight: 21kg
- Chain Compatibility: 8-10mm DIN766
- Rope Compatibility: 12-14mm 3-strand nylon

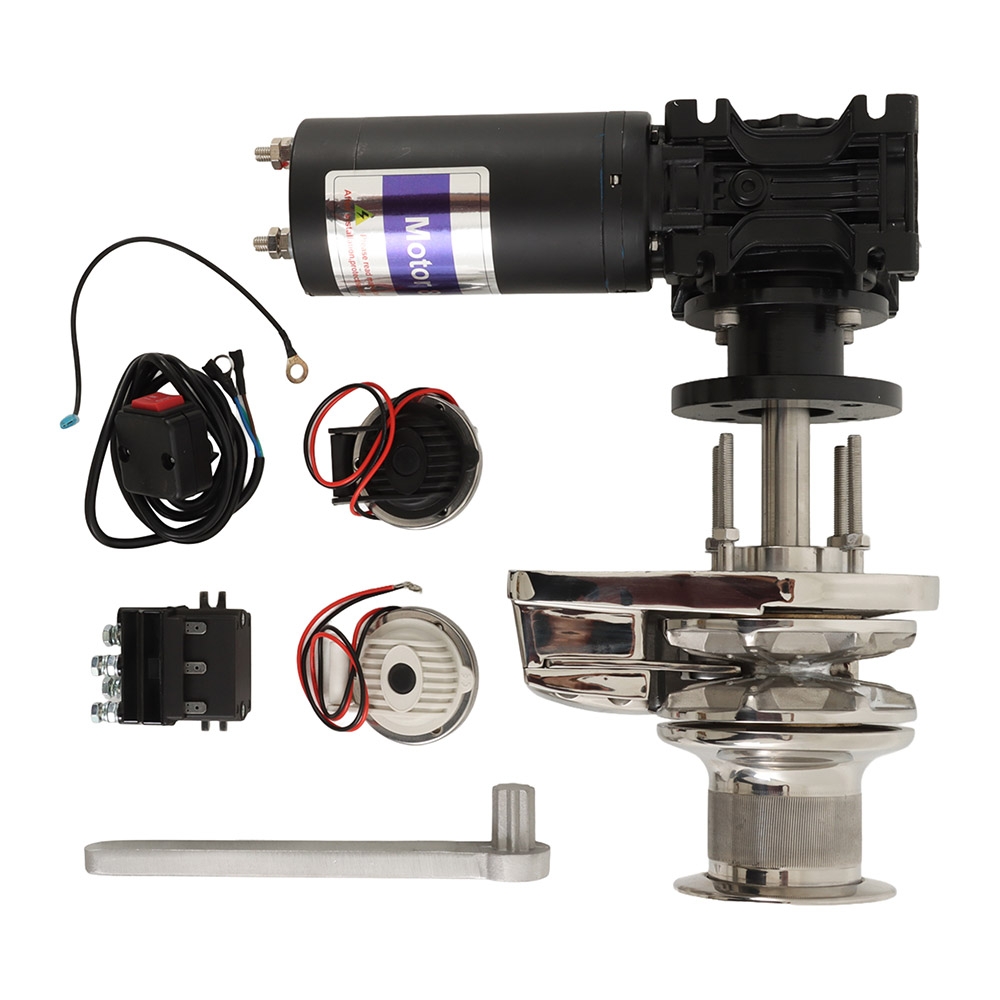

What's Included:
- 1x Abel Vertical Anchor Windlass with Capstan
- 1x Up/Down Switch
- 1x Circuit Breaker
- 1x Reversing Solenoid
- 1x Clutch Handle
