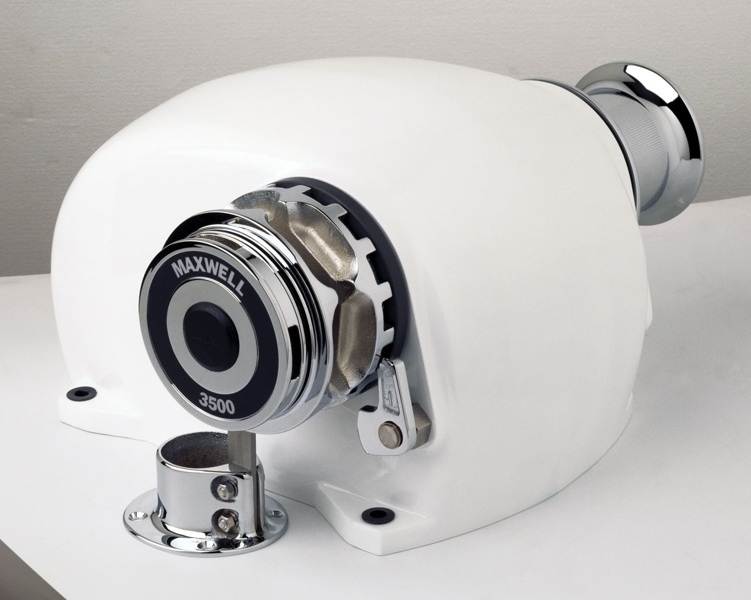

Maxwell 3500 HWC Horizontal Windlass 24v SCW/SD for 8-13mm Chain
Deliver to:
Bulk Item
Auckland 1026,
NZ
Estimated:
$89.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Designed for automatic horizontal handling, it has an independent
capstan for retrieval of a secondary rope/chain rode or to assist
with docking procedures.
Specifications:
Product Data Sheet
Specifications:
| Voltage (V) | 24 V |
|---|---|
| Sense of rotation | - |
| Motor (W) | 1200 |
| Maximum pull/lift (kg) | 1000 |
| Static hold (kg) | 2200 |
| Chain short link (mm) | 9-11 |
| Line speed (normal working) (m) | 17 m/min |
| Net weight, electric (kg) | 55 |
| A (mm) | 495 |
| B (mm) | 289 |
| C (mm) | 516 |
| I (mm) | 125 |
| D (hole centres) (mm) | 234 |
| F (hole centres) (mm) | 278 |
| G (approximate hole centres) (mm) | 300 |
| H (working height of drum for rope warping) (mm) | 60 |
| J (mm) | 194 |
Product Data Sheet
Bulk Items Shipping
This item is classified as a Bulk item and must be processed by a specialised courier.
Please therefore allow an extra 1-7 days above the usual shipping time.
Shipping Rates for Bulk Items
See the table below for the cost of shipping Bulk items. Prices are indicative, larger volume items may incur additional freight costs.
| Auckland | Auckland Rural | North Island Metro | North Island Rural | Great Barrier Island | South Island Metro | South Island Rural | |
|---|---|---|---|---|---|---|---|
| Bulk <25 KG | $79.99 | $79.99 | $109.99 | $109.99 | $109.99 | $139.99 | $139.99 |
| Bulk 50 KG | $89.99 | $89.99 | $139.99 | $139.99 | $139.99 | $179.99 | $179.99 |
| Bulk 100 KG | $99.99 | $99.99 | $169.99 | $169.99 | $169.99 | $229.99 | $229.99 |
| Bulk 150 KG | $109.99 | $109.99 | $199.99 | $199.99 | $199.99 | $279.99 | $279.99 |
| Bulk 200 KG | $119.99 | $119.99 | $229.99 | $229.99 | $229.99 | $329.99 | $329.99 |
Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
