Special Order

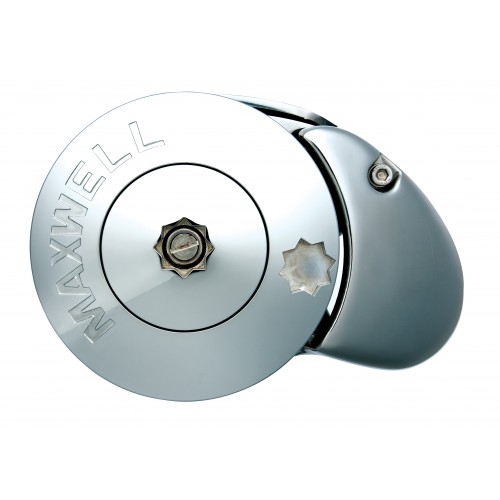

Maxwell RC8-6 Windlass Anchor Winch 12v 600W 65TDC
Deliver to:
Auckland 1026,
NZ
Estimated:
$9.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Low profile and easy to install
The Maxwell RC8-6 Windlass Anchor Winch proudly follows in the highly successful footsteps of the Freedom, Liberty and HRC fully automatic rope/chain anchor winches. This is the 'low profile' version of the RC8-6 - it works just as effectively with all-chain rodes for those who desire a low profile, elegantly styled windlass on their foredeck.
Maxwell RC8-6 Windlass Anchor Winch Features:
- Fully automatic rope/chain windlass
- Designed to effortlessly retrieve and deploy 6mm/7mm (1/4”) chain spliced to 12mm (1/2”) three strand or 8-plait rope
- Wave Design chainwheel is able to accommodate a wide range of chain pitch differences within the specified chain size diameters suitable for use with the RC8 Series
- Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass
- Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self-aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations
- Full disassembly capability of top works utilising handle provided, a screw driver and an Allen key
- Material: marine grade 316 stainless steel for long term durability
- Heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice
- In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure
- Huge through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker
- Cone type clutch/brake mechanism permits manual, free fall anchoring
- Sealed oil bath and marine grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and worm wheel
Maxwell RC8-6 Windlass Anchor Winch Specifications:
- Model: RC8-6
- Maximum pull/lift: 350kg (770lb)
- Static hold: 1200kg (2640lb)
- Chain short link: 6/7mm (1/4in)
- Rope size (nylon - 3 strand/8 platin recommended): 12mm (1/2in)
- Chain speed (anchor retrieval): 28m/min (92ft/min)
- Rope speed (anchor retrieval): 24m/min (79ft/min)
- Power supply (DC): 12v
- Motor power: 600W
- Net weight: 12.5kg (27.5lb)
Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
