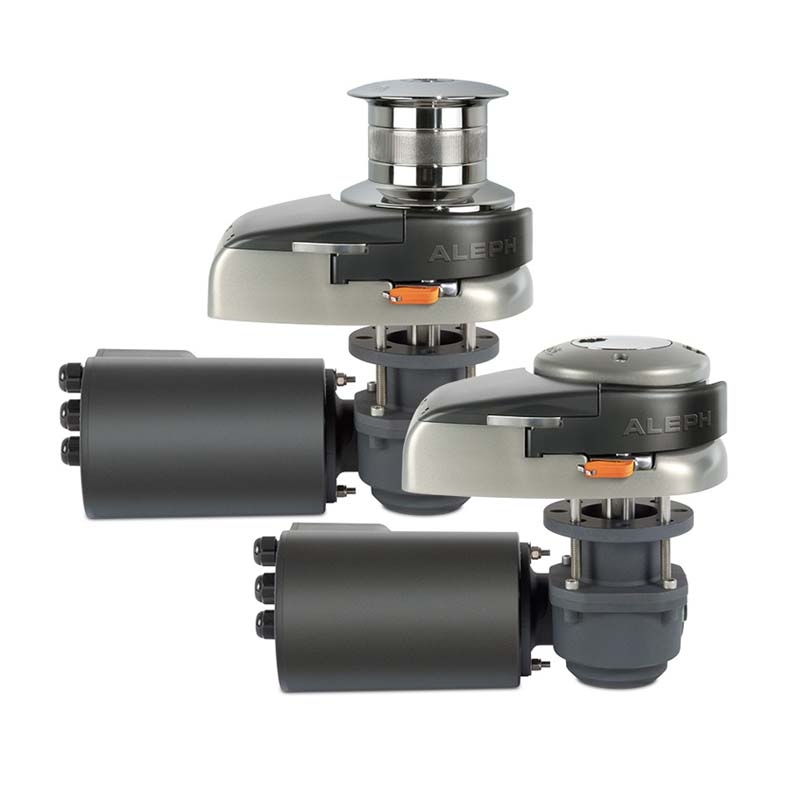

Quick Aleph Windlass Winch 1000W 8mm 24v with Drum
Buy now, pay later & Finance Options
Find Local Store
- Vertical windlasses
- Base in anodized aluminium in hard oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor
- Anodized aluminium gearbox
Standard version
HC3 1000 / D / DB
Motor power
1000 W
Motor supply voltage
12 V
24 V
Maximum pull
1300 Kg
2866 lb1300 Kg
2866 lbMaximum working load
400 Kg
881.8 lb490 Kg
1080.2 lbWorking load
130 Kg
286,6 lb160 Kg
352.7 lbCurrent absorbtion @ working load (1)
140 A
80 A
Maximum chain speed (2)
32,4 m/min
106.3 ft/min40,9 m/min
134.2 ft/minMaximum chain speed @ working load (2)
17,8 m/min
58.4 ft/min21,0 m/min
68.9 ft/minWeight- H - [without drum]
23,9 Kg
52.7 lb23,9 Kg
52.7 lbWeight - HD - [with drum]
25,3 Kg
55.8 lb25,3 Kg
55.8 lbWeight - HDB - [drum on the gypsy ]
26,5 Kg
58.4 lb26,5 Kg
58.4 lbWeight - H - Aluminium jackets - [without drum]
25,4 Kg
56 lb25,4 Kg
56 lbWeight - HD - Aluminium jackets - [with drum]
26,8 Kg
59.1 lb26,8 Kg
59.1 lbWeight - HDB - Aluminium jackets - [drum on the gypsy]
28 Kg
61.7 lb28 Kg
61.7 lb
