Better performance, comfort and fuel economy – all in one kit box
The Zipwake KB300-S Dynamic Trim Control System Straight Kit includes all the parts you need to install a Dynamic Trim Control System with one pair of fast-acting straight or chine interceptors. Enjoy a smoother ride, better visibility, improved fuel economy and enhanced safety. The Dynamic Trim Control System Series S puts you in command of running trim, heel and heading.
Auto Pitch Control
Experience faster acceleration, extended planing speed range and improved visibility as you cruise on the water.
Active Roll Control
Active roll control dynamically and automatically keeps your boat on an even keel — regardless of wind, load distribution or rough waves.
Balanced Turn
Perfectly balanced turns — every time. Whatever your speed, Zipwake automatically adjusts the heeling angle of your boat for a safer and more comfortable ride.

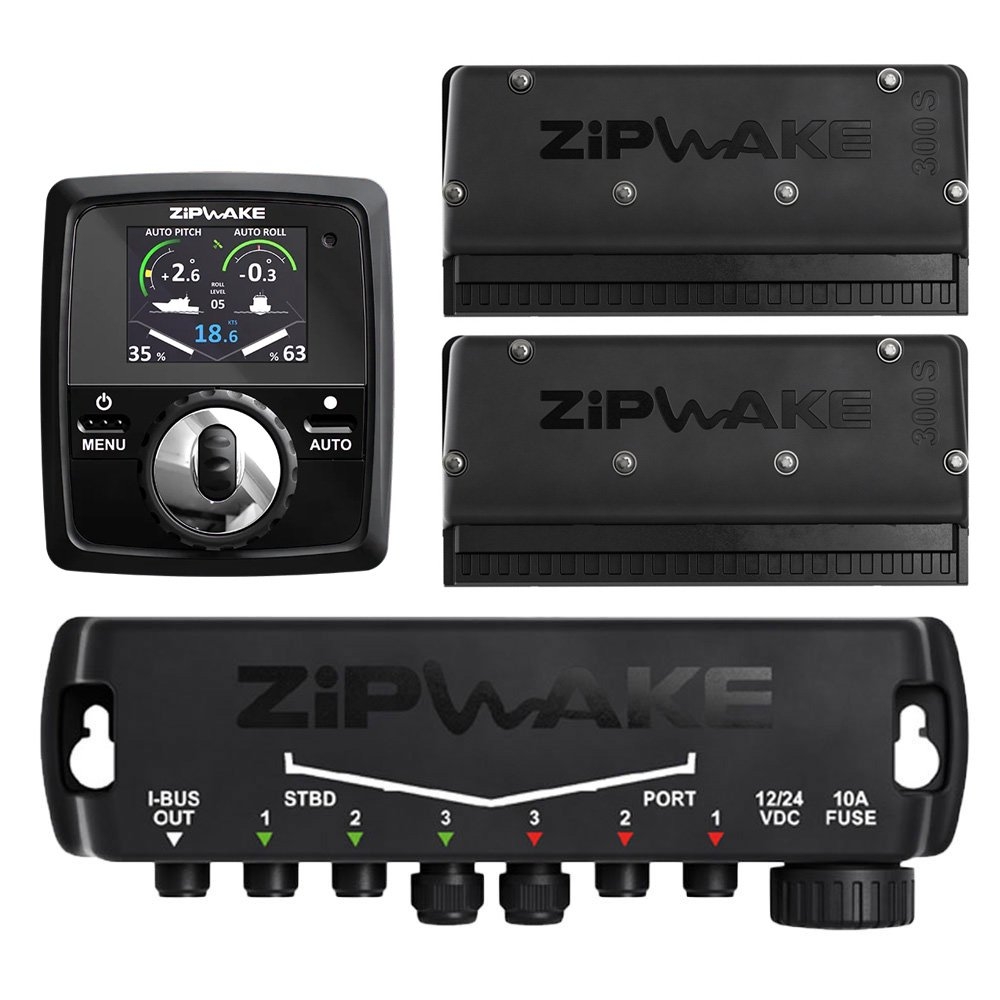

Kit Includes:
- Control Panel with 7m standard cable
- Distribution Unit with 4m power cable
- Interceptor (pair) with 3m cable and cable cover
- Mounting screws
- Documentation and mounting templates

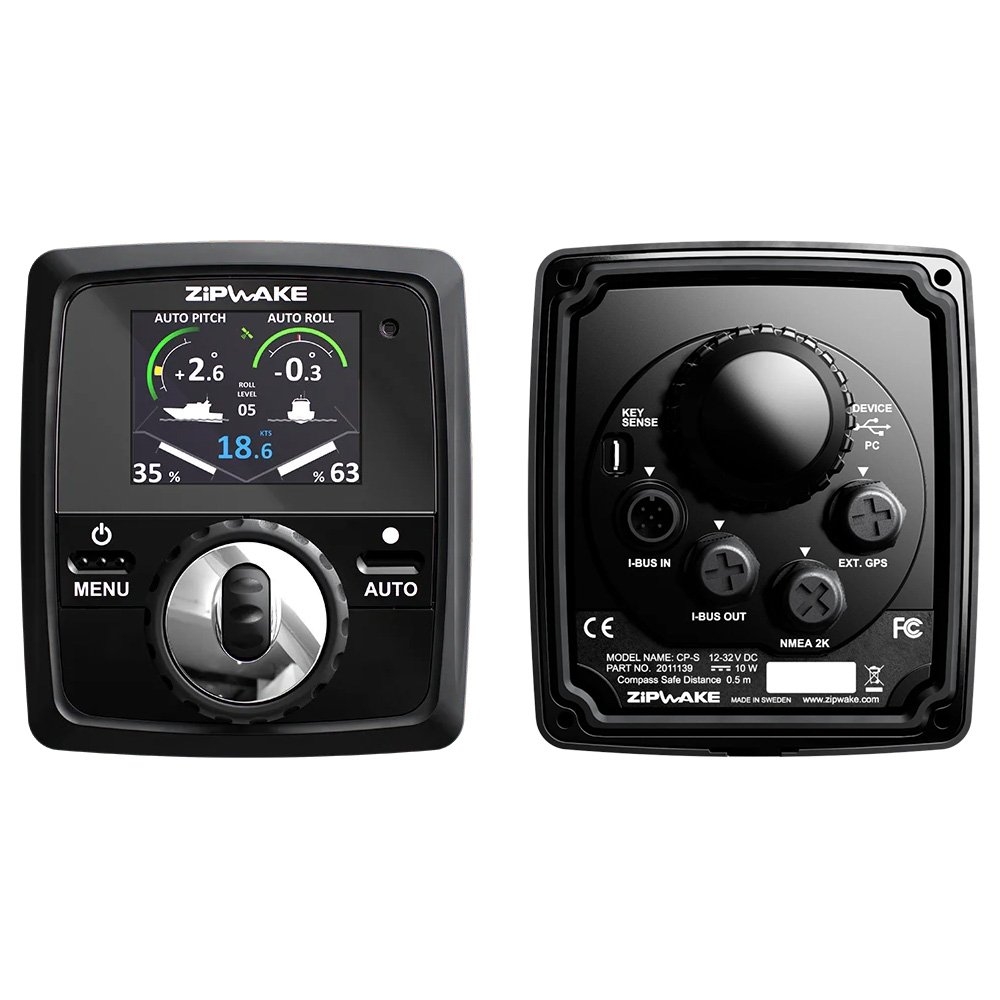

The Control Panel
Zipwake's stylish, intuitive Series S Control Panel puts a smoother, more comfortable ride at the tips of your fingertips. Features a sunlight-readable and waterproof colour display and an "auto" button for fully automatic trim and motion control.
The panel's two unique control wheels provide easy, quick and intuitive manual control of running trim, heel or heading. However, the system normally operates in automatic control mode, which is enabled by a single press on the AUTO button. In this mode, the built-in high-frequency GPS, 3D gyro sensors and motion controller automatically ensure dynamic elimination of uncomfortable and dangerous boat pitch and roll.

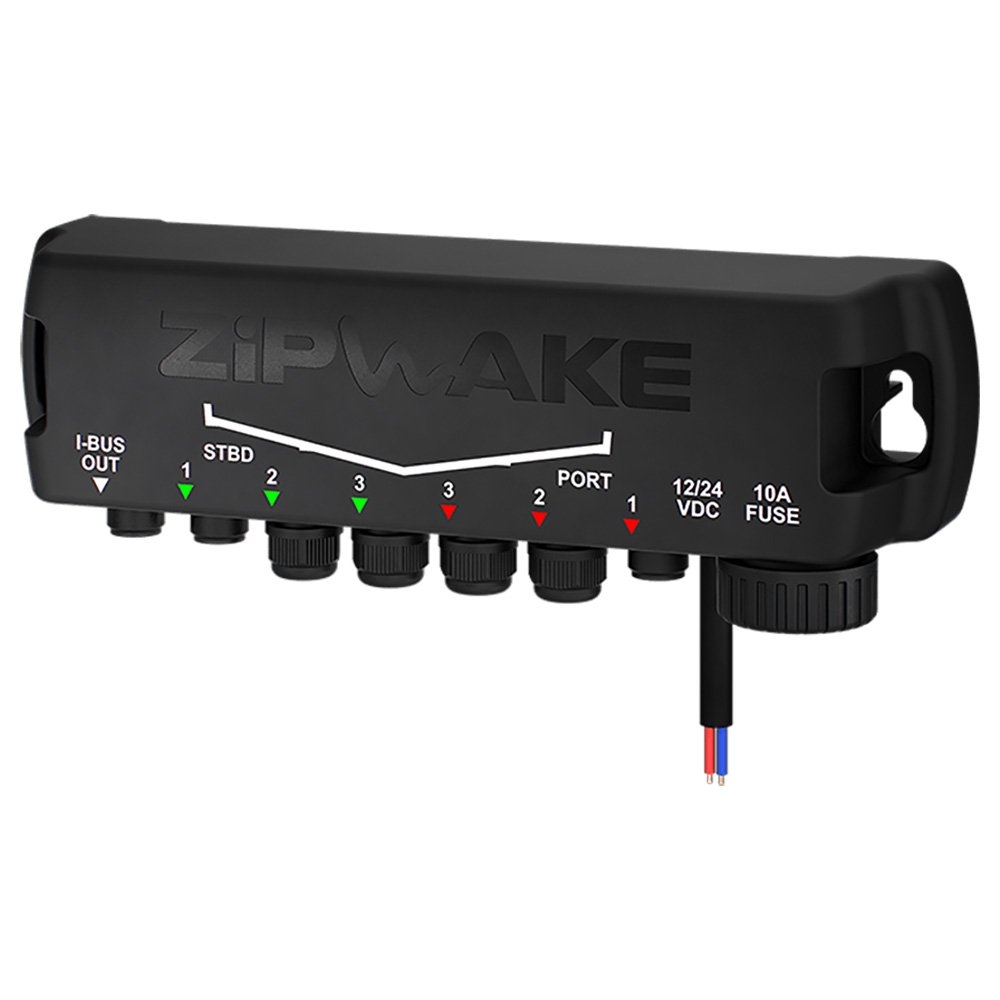

The Distribution Unit
The Distribution Unit supplies the system with power and can accommodate up to six Series S interceptors. The unit is connected to the main control panel or integrator module. It's robust, waterproof, oil resistant and ignition protected for mounting in an engine room. The power cable is included for easy connection to a battery. The distribution unit has built-in electrical protection, including its own protection fuse.

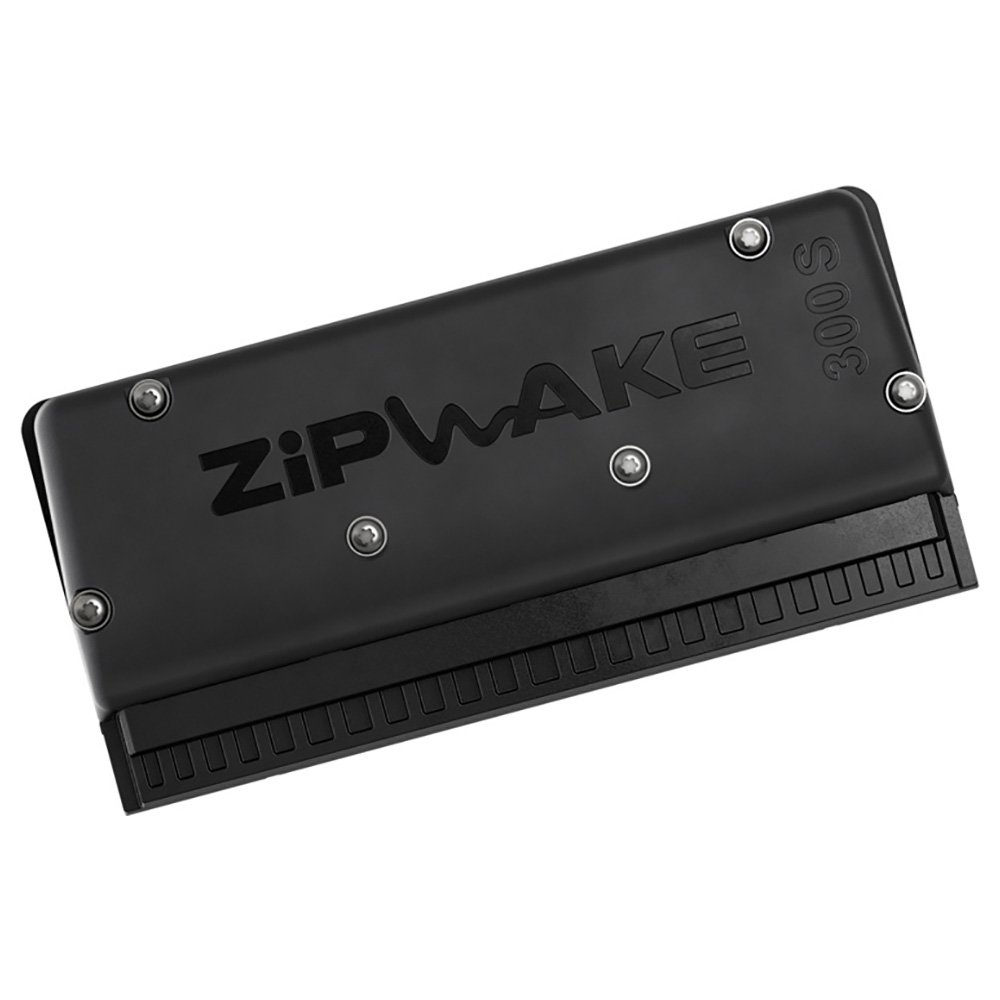

The Interceptors
The durable, fast acting interceptors are designed to eliminate the well-known trim problems of planing and semi-planing boats. Zipwake's PRO interceptors move five times faster, offering significant improvements in performance and precision. The increased blade rate means quicker adjustments, allowing the system to respond rapidly to changing conditions. Whether you’re dealing with wind, waves or varying loads, Zipwake PRO optimises your boat's handling, delivering more accurate control when you need it most.
Zipwake Series S Control Panel Features:
- Fully automatic: dynamic pitch and roll control, steering and turn enhancement
- Built-in GPS and motion sensors
- Unique and intuitive 3D controls
- Sunlight readable colour display
- Instant state user feedback
- Auto power on/off via ignition key sense
- Full range of electrical interfaces
- NMEA 2000
- IP67 / IP64 Waterproof
- Auto dimming / night mode
- Upgradable via USB stick
- Supports up to 3 additional Control Panels in the system
- Surface or flush mount
- Manages installation configurations from 1 up to 6 interceptors
Zipwake Series S Control Panel Features:
- Model: CP-S
- Display: 2.4" Transflective colour TFT, 320 x 240 pixels, double-sided, anti-reflection coated window
- Dimensions: 112 x 98 x 15 mm
- Internal sensors: 5Hz GPS, 3D Gyro, 3D Accelerometer, Ambient light
- Supply voltage: 12-32 VDC
- Power consumption: 10W max
- Operating temperature: -20° to +85°C
- Storage temperature: -40° to +90°C
- Waterproof rating: IP67 / IP64 (front / back)
- Compass safe distance: 0.5m
- Compliance: CE, FCC
- Weight: 0.22kg
- Mounting: Flush or surface
Zipwake Series S Distribution Unit Features:
- Provides reliable power delivery to all connected interceptors
- Ensures smooth and efficient operation
- Compact, robust and easy to install
Zipwake Series S Distribution Unit Specifications:
- Model: DU-S
- Dimensions: 205 x 53 x 68 mm
- Supply voltage: 12-32 VDC
- Power consumption: 0.1W max
- Protection fuse: 10A ATO
- Power cable length: 4m x 9mm (dia), 12 AWG
- Operating temperature: -20° to +85°C
- Storage temperature: -40° to +90°C
- Waterproof rating: IP67 with cables and/or protective caps mounted
- Oil resistance: Common engine fluids
- Compliance: CE, FCC, SAEJ1171 Ignition Protected
- Weight: 1.0kg including the power cable
Zipwake Series S Interceptors Features:
- True outboard mount
- Modular design
- Fast actuation
- Submersible servo units
- Brushless 12-24V DC servo
- Calibration free
- High-precision positioning
- Durable and accessible
- Integrated mounting plate
- Thru hull fitting options: above waterline - concealed behind interceptor
- No corrosive materials
- Straight models
Zipwake Series S Interceptors Specifications:
- Model: IT300-S (Straight)
- Dimensions: 300 x 115 x 56mm
- Weight: 2.1kg
- Max. boat speed: 60 knots
- Blade stroke: 30mm
- Blade rate: 20mm/s
- Thru-hull cable fitting: Concealed or above waterline
- Servo actuator: SU-S
- Cable length: 3m, extendable up to 6m
- Cable material: PUR
- Connector: M12 5-pin circular
- Connector diameter: 14.5mm
- Supply voltage: 12-32 VDC
- Power consumption: 25W max
- Operating temperature: 0° to +40°C
- Storage temperature: -40° to +90°C
- Waterproof rating: IP68 5m
- Compliance: CE, FCC
- Connector diameter: 14.5mm
