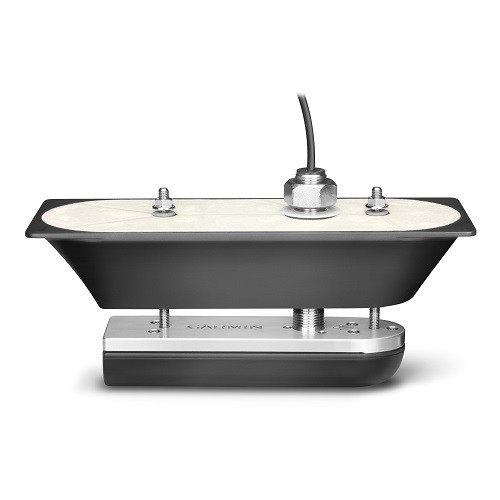

Garmin GT50M-TH Thru Hull DownVu/SideVu 12-Pin
Deliver to:
Auckland 1026,
NZ
Estimated:
$6.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
This thru-hull transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional CHIRP sonar and CHIRP DownV/SideV transducer is optimized for clearer images at shallower depths.
The CHIRP DownV/ SideV elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 455/800 kHz. The traditional CHIRP sonar has a power rating of 300 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.
Garmin GT50M-TH Stainless Steel Thru-Hull Features:- DownV/SideV 500W (CHIRP 455/800 kHz) Traditional 300W (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-pin)
- Model: 010-01965-10
Specifications:
| DownV/SideV Capability | |
|---|---|
| CHIRP | Yes |
| Frequency | 455-800 |
| Power | 500w each total 1,500w |
| Maximum depth | 750 ft down, 500ft left and right |
| Traditional Sonar Capability | |
| CHIRP | Yes |
| Frequency | Mid-band CHIRP 80-160 |
| Power | 300w |
| Maximum depth | 1,500 saltwater |
| Water temperature | Yes |
| Maximum deadrise | 25 degrees |
What's in the Box:
- 12-pin Stainless steel transducer
- Fairing block
- Isolation plate and bushing
- Mounting hardware
- Instalation instructions
