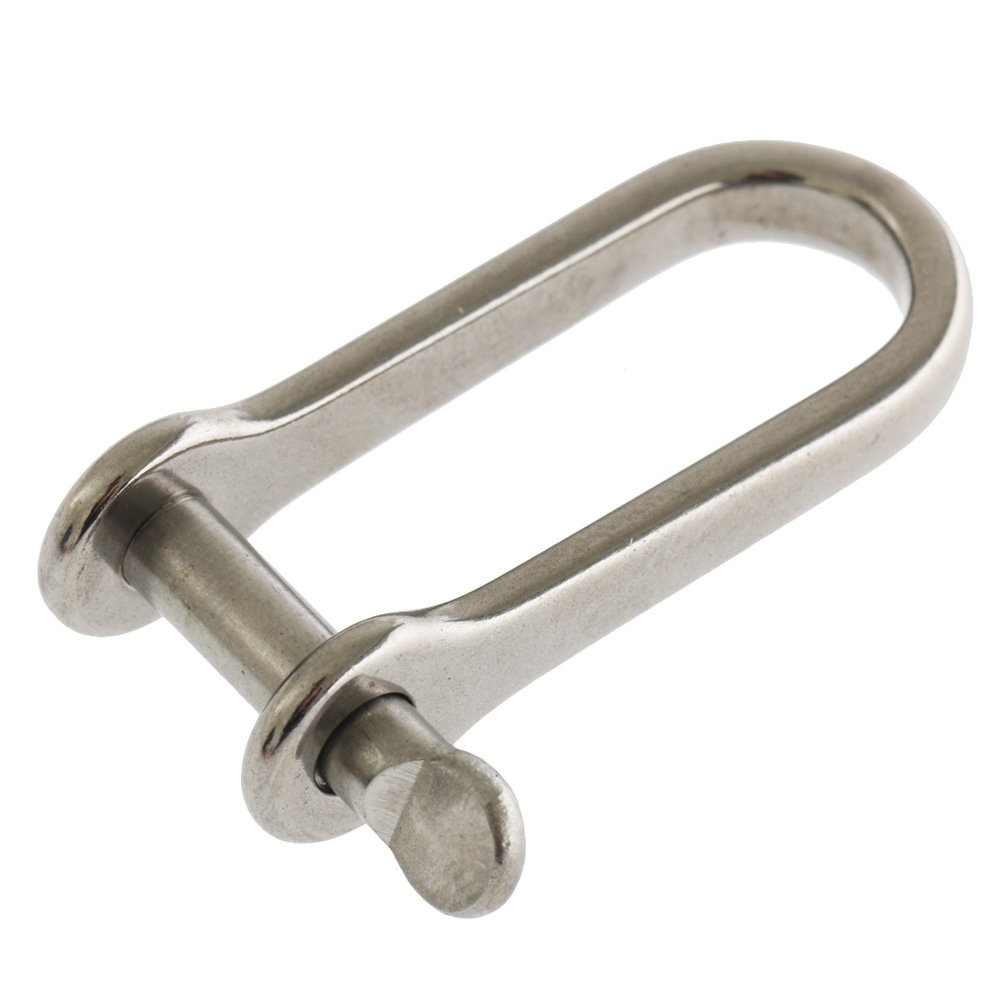

Ronstan 316SS Long D Shackle Coined Pin Head
Deliver to:
Auckland 1026,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy Now, Pay Later with
Find Local Store
Report incorrect product information
Rock-solid, reliable connections on deck
The Ronstan 316SS Long D Shackle is designed for durability and performance in demanding marine environments. Constructed from premium-grade 316 stainless steel, it offers excellent resistance to corrosion and wear, ensuring reliability over time. This shandard D shackle is equipped with a screw pin featuring a coined head, allowing for effortless handling and secure fastening.
This lightweight shackle is an ideal choice for various applications in sailing, ensuring that you can rely on its strength and integrity while minimising added weight to your setup. The combination of a robust design with a lightweight profile makes it suitable for a wide range of marine applications, from securing blocks to connecting hardware on your sailing vessel.
Ronstan 316SS Long D Shackle Features:
- Grade 316 stainless steel long D shackle
- High strength to weight ratio
- High load capacity
- Premium quality, rated
- Coined shackle pin head
Ronstan 316SS Long D Shackle Specifications:
| Part Number | Pin Diameter (in) | Pin Diameter (mm) | Inside Length | Inside Width | Point Load Breaking Load | Uniformly Distributed Load | Weight |
|---|---|---|---|---|---|---|---|
| RF621 | 5/23" | 4mm | 26mm | 10mm | 600kg | 800kg | 10g |
| RF622 | 3/16" | 4.8mm | 31mm | 11mm | 800kg | 1200kg | 15g |
| RF623 | 1/4" | 6.4mm | 44mm | 15mm | 1400kg | 2300kg | 30g |
| RF624 | 5/16" | 7.9mm | 55mm | 17mm | 2700kg | 3600kg | 60g |
Note: The "Uniformly Distributed Load" breaking load of the shackle; the load is applied across the full span of the shackle pin. The "Point Load" breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.
